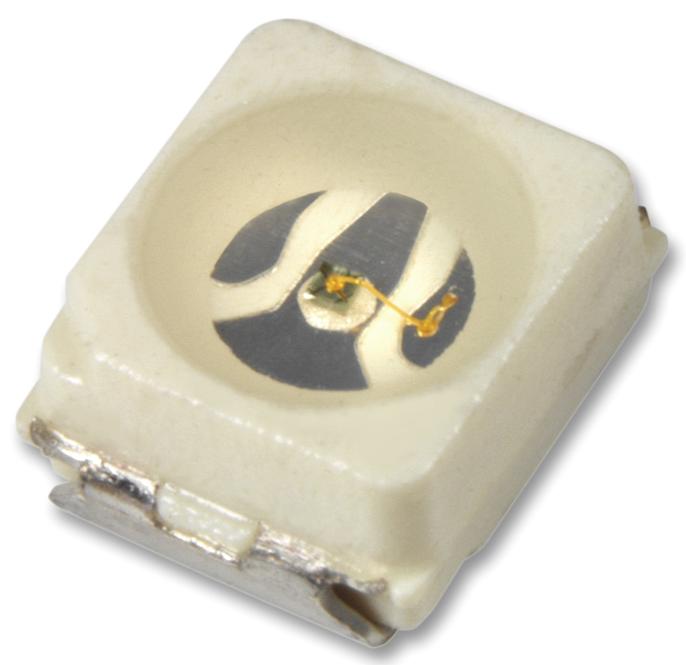

Vishay VLMG31L1M2GS18 Green LED
This high-brightness surface-mount LED in a PLCC-2 package is designed for automotive backlighting, indicators, backlighting in telecom, and general illumination. Featuring a flat, non-diffused lens ideal for coupling with light pipes and LCD backlighting, it complies with AEC-Q101 standards. The LED supports IR reflow, vapor phase, and wave soldering processes, compatible with automatic placement equipment. With a luminous intensity up to 28 med, wavelength near 565 nm, and forward voltage of 2.2–2.8 V at 20 mA, it provides reliable, low-power performance in harsh environments, with strong ESD resistance up to 2 kV.
Vishay VLMG31L1M2GS18 Green LED Specifications:
- Package: SMD PLCC-2
- Material: White thermoplast with embedded lead frame
- Lens: Non-diffused for coupling and backlit applications
- Luminous Intensity: Up to 28 med at 20 mA
- Wavelength: Approximately 565 nm
- Forward Voltage: 2.2–2.8 V at 20 mA
- Reverse Voltage: 6 V
- Surge Forward Current: <10 ps, <0.5 A
- Peak Wavelength: 565 nm
- Junction Temperature: 100°C
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- ESD Withstand Voltage: Up to 2 kV
- Compatibility: Reflow, vapor phase, wave soldering according to CECC 00802 and J-STD-020
- Mounting: Suitable for automatic placement
- Standards: AEC-Q101 qualified
Buy the VISHAY VLMG31L1M2GS18 – Reliable Green LED for Industrial Applications
Purchase the Vishay VLMG31L1M2GS18 green LED now online to ensure reliable, high-brightness illumination for automotive dashboards, indicator lights, and backlighting in electronic devices. This high-quality surface-mount LED features a flat lens for optimal light coupling, supports automatic assembly processes, and is qualified for demanding environments. Its compatibility with various soldering techniques and high ESD resistance up to 2 kV make it suitable for many applications, delivering consistent performance with low power consumption and meeting stringent industry standards.
Order your Vishay VLMG31L1M2GS18 high-brightness LED today and enhance your automotive, backlighting, or indicator projects with dependable quality.
Frequently Asked Questions
Where can I buy Vishay VLMG31L1M2GS18?
You can click on the BUY or RFQ button to purchase VLMG31L1M2GS18 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VLMG31L1M2GS18?
You can download the VLMG31L1M2GS18 datasheet or visit the Vishay website for support.
Who is the manufacturer of VLMG31L1M2GS18?
Vishay
