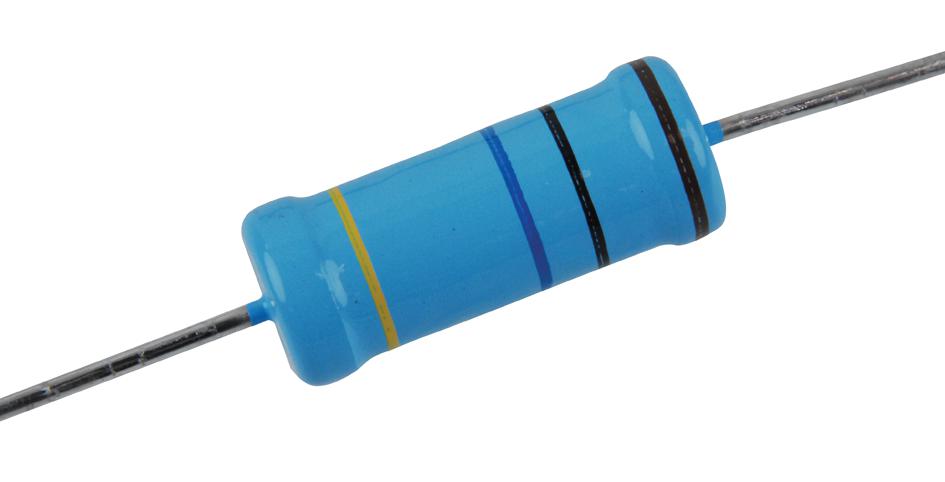

Vishay VR68000002203JAC00 High Voltage Metal Glaze Resistors
Vishay high ohmic and high voltage metal glaze leaded resistors feature a ceramic body coated with a metal film, providing high stability, high resistance, and high voltage capabilities. Designed for demanding applications like power supplies, automotive electronics, and humid environments, these resistors meet safety and environmental standards including UL, IEC, RoHS, and REACH. They are manufactured through precise laser etching, with a protective light blue lacquer for mechanical and climatic protection. Available in different sizes, resistance ranges, and TCR specifications, they are suitable for automatic insertion and soldering processes, ensuring durability and reliable performance.
Vishay VR68000002203JAC00 High Voltage Metal Glaze Resistors Specifications:
- Resistance range: 100 kΩ to 33 MΩ
- Resistance tolerance: 1%, 5%, 10%
- Temperature coefficient: <= 200 ppm/K
- Rated dissipation: VR25 0.25 W, VR37 0.5 W, VR68 10 W
- Operating voltage: VR25 1600 V, VR37 3600 V, VR68 10,000 V
- Operating temperature: -55°C to +155°C
- Peak film temperature: 155°C
- Thermal resistance: VR25 140 KΩ, VR37 120 KΩ, VR68 70 KΩ
- Insulation voltage: 700 V, 1 min
- Maximum noise: VR25 5 NV, VR37/VR68 2.5 NV
- Resistance change after 1000 hours: within 15%
- Compliance: UL1676, IEC 60065, RoHS, IEC 62474, GADSL, SVHC
- Construction: Metal glazed film on ceramic body, light blue lacquer coating
- Lead material: Electrolytic copper with tin plating
- Dimensions: VR25 (2.5 mm x 6.5 mm), VR37 (4.0 mm x 9.0 mm), VR68 (6.8 mm x 18.0 mm)
Buy the Vishay Series VR68000002203JAC00 High Voltage Metal Glaze Resistors: VR68000002203JAC00
Discover Vishay high voltage, high resistance metal glaze resistors designed for power supplies, automotive electronics, and humid environments. These resistors meet UL, RoHS, and IEC standards, offering excellent thermal stability, durability, and safety. Manufactured with precision laser etching on high-grade ceramic bodies, they feature protective lacquer coatings for climatic and mechanical protection. Available in various sizes and resistance ranges, they are suitable for automatic insertion, soldering, and high pulse loading applications. Enhance your industrial, automotive, or electronics project with Vishay quality today.
Get Vishay VR25 resistors today—built for high stability, high resistance, and reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay VR68000002203JAC00?
You can click on the BUY or RFQ button to purchase VR68000002203JAC00 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VR68000002203JAC00?
You can download the VR68000002203JAC00 datasheet or visit the Vishay website for support.
Who is the manufacturer of VR68000002203JAC00?
Vishay
