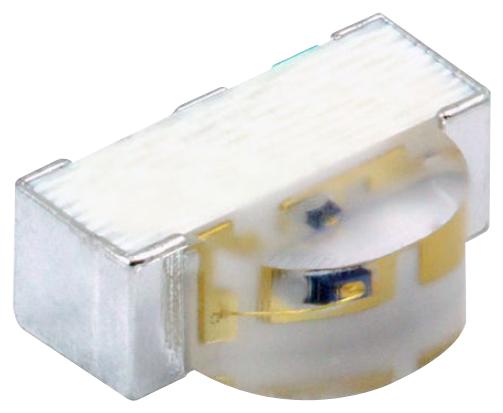

Vishay VSMB10940 Infrared Emitter Diode
The VSMB10940 is a high-speed infrared emitter diode operating at 940 nm, designed with GaAlAs MQW technology. It features a side-view surface mount package with high radiant power and intensity, suitable for IR touch panels, low-space high power emitters, and reflective or transmissive sensors. Its compact dimensions of 3 x 2 x 1 mm, low forward voltage, and RoHS compliance make it ideal for various industrial optical applications. The diode supports high reliability and fast response times, with peak wavelength at 940 nm and specialized lens for surface mounting ease.
Vishay VSMB10940 Infrared Emitter Diode Specifications:
- Package type: Surface mount, side view
- Dimensions: 3 x 2 x 1 mm
- Peak wavelength: 940 nm
- Forward voltage: 1.35 V at 65 mA
- Forward current: 65 mA, surge 500 mA
- Radiant power: 35 mW at 100 mA
- Radiant intensity: 13 mW/sr at 500 mA
- Peak wavelength tolerance: ±25 nm, spectral bandwidth
- Operating temperature range: -40°C to +85°C
- Storage temperature range: -40°C to +100°C
- Maximum reverse voltage: 5 V
- Soldering temperature: 260°C (J-STD-020)
- Floor life: 168 hours (Moisture sensitivity level 3)
- Mounting: Lead-free reflow soldering, RoHS compliant
Buy the Vishay VSMB10940 – Reliable Infrared Emitter for Industrial Applications
Order the Vishay VSMB10940 infrared emitter diode online today to leverage its high radiant power, fast response, and compact side-view surface mount design. Perfect for IR touch panels, high-performance sensors, and low-space applications, this diode offers high reliability, RoHS compliance, and ease of integration into your manufacturing process. Its peak wavelength of 940 nm and low forward voltage ensure efficient operation in various sensing and optical systems. Secure your supply now for dependable, professional-grade performance in demanding industrial environments.
Get Vishay VSMB10940 today—built for high radiant power, high speed, and long-lasting durability in sensor and emitter applications.
