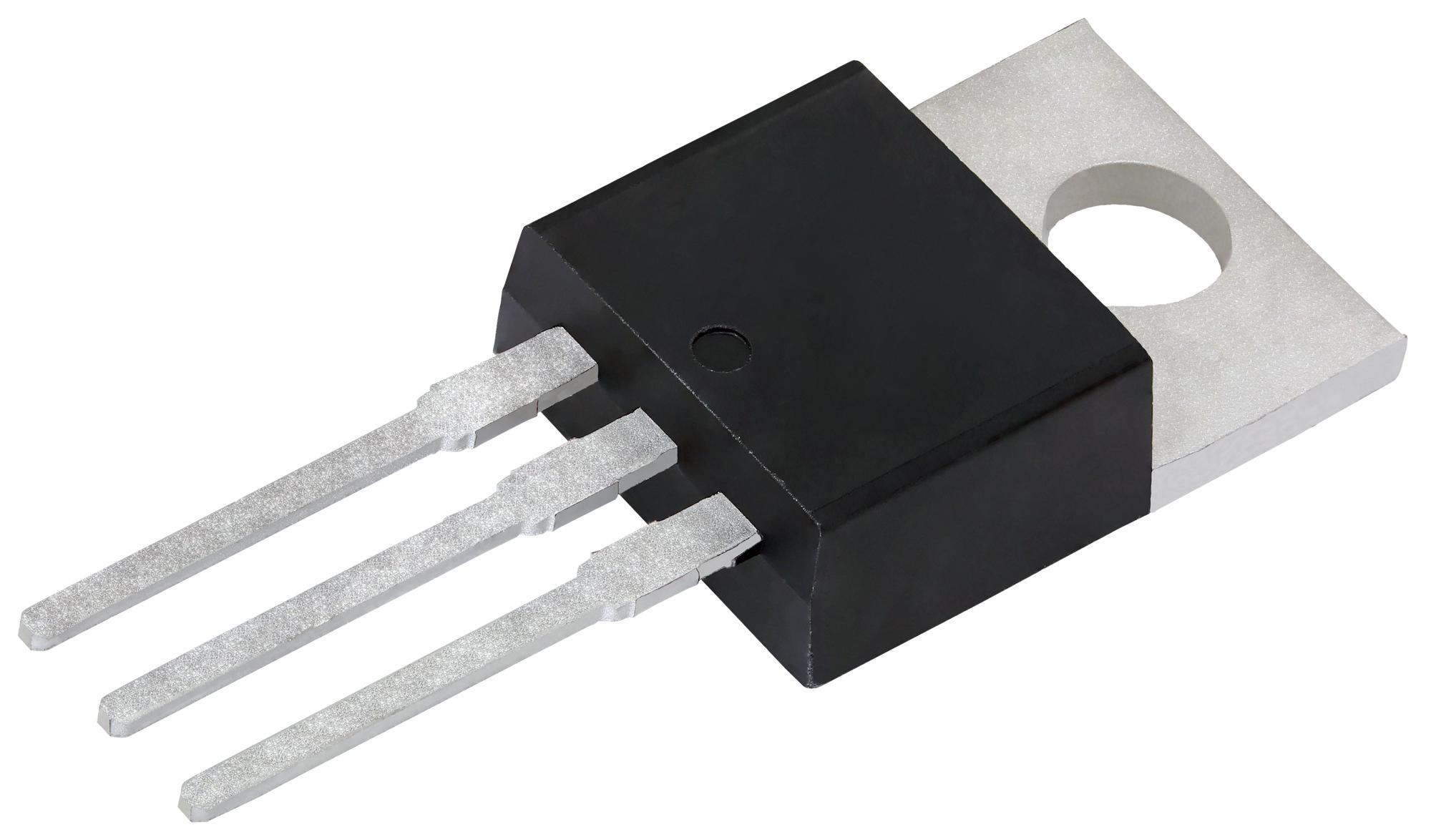

Vishay VX60M100CM3P High Voltage Schottky Rectifier
The VISHAY VX60M100C is a high voltage dual Trench MOS Barrier Schottky rectifier designed for efficient power conversion in industrial, automotive, and high-frequency switching applications. Featuring low forward voltage drop of 0.39 V at 5A and a maximum repetitive peak reverse voltage of 100V, it ensures high efficiency and reduced power losses. Its TO-220AB package offers excellent thermal performance and rugged mechanical stability, making it suitable for high current operations like DC/DC converters, power supplies, and reverse battery protection within demanding environments.
Vishay VX60M100CM3P High Voltage Schottky Rectifier Specifications:
- Maximum repetitive peak reverse voltage: 100 V
- Maximum average forward rectified current per device: 60 A
- Peak forward surge current: 320 A
- Forward voltage drop at 5A: 0.49 V typical, 0.61 V max at 25°C
- Reverse current at rated Vp: 0.32 mA at 25°C, 7-20 mA at 100V at 125°C
- Junction temperature range: -40°C to +175°C
- Thermal resistance junction-to-ambient: approximately 1 °C/W
- Case: TO-220AB, halogen-free, RoHS-compliant
- Lead material: matte tin plated, solderable per J-STD-002
- Dimensions conform to JEDEC® TO-220 outline
- Operating junction temperature: -40°C to +175°C
- Material: high-reliability trench MOS barrier Schottky technology
- Solder bath temperature maximum: 275°C
- Mechanical mounting torque: maximum 10 in-lbs
- Order code: VX60M100C-M3/P
Buy the Vishay Series VX60M100C High Voltage Schottky Rectifier: VX60M100C
Purchase the Vishay VX60M100C high voltage dual Schottky rectifier online today. Engineered with advanced trench MOS barrier technology, it offers low forward voltage drop, high surge current capacity, and excellent thermal performance. Designed for automotive, industrial, and power supply applications, this rugged TO-220AB package ensures reliable operation under demanding conditions. Efficient and RoHS-compliant, the VX60M100C helps optimize your power electronics with ease of assembly and long-term durability. Don’t miss out—order now for fast delivery and superior performance!
Get Vishay VX60M100C today—built for precision and long-lasting durability in high current power applications.
Frequently Asked Questions
Where can I buy Vishay VX60M100CM3P?
You can click on the BUY or RFQ button to purchase VX60M100CM3P from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VX60M100CM3P?
You can download the VX60M100CM3P datasheet or visit the Vishay website for support.
Who is the manufacturer of VX60M100CM3P?
Vishay
