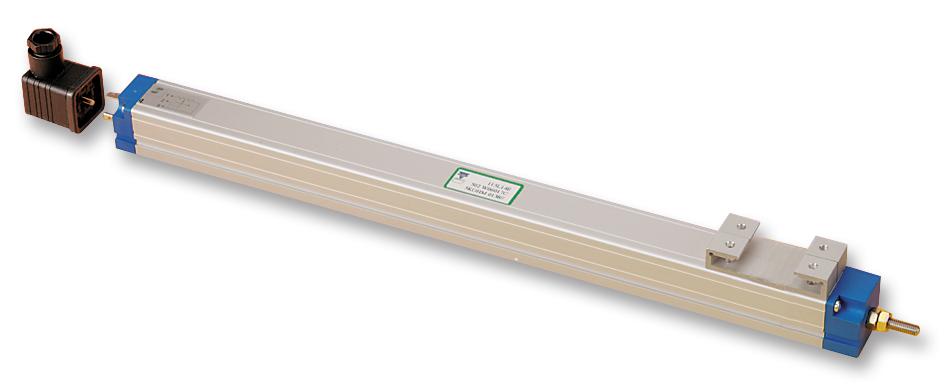

Vishay 115L52E502W06017 Precision Linear Transducer
The VISHAY 115L precision linear transducer is a robust and reliable solution for industrial linear motion measurement. This transducer provides high accuracy, excellent repeatability, and a long operational life. It is designed for simple mounting and offers a wide measurement range, making it suitable for various applications requiring precise linear position feedback. The transducer's insensitivity to temperature variations ensures stable performance in challenging environments. It is commonly used in automated machinery, robotics, and other industrial automation systems.
Vishay 115L52E502W06017 Precision Linear Transducer Specifications:
- Measurement Range: 25 mm to 1000 mm
- Accuracy: ± 1 % down to ± 0,025 %
- Repeatability: Excellent
- Life: Long
- Resolution: Essentially Infinite
- Temperature Sensitivity: Not Sensitive
- Theoretical Electrical Travel (TET): in increments of 25 mm
- Independent Linearity: ≤± 1 % -≤±0,1 % (over TET)
- Actual Electrical Travel (AET): E = 1,5 mm min.
- Ohmic Values: 400Ω/cm to 2 kΩ/cm
- Resistance Tolerance: ± 20 % at 20°C
- Maximum Power Rating: 0.04 W/cm at 70°C
- Wiper Current: recommended : a few µA, max. 1 mA continuous
- Load Resistance: minimum 103x RT
- Insulation Resistance: ≥1000 MΩ at 500 VDC
- Dielectric Strength: ≥1000 V RMS at 50 Hz
- Mechanical Travel: E + 8 ± 2 mm
- Housing Material: anodized aluminium
- Operating Force: 7.5 N typical
- Shaft Material: stainless steel
- Termination Type: hydraulic type connector, DIN 43650
- Wiper Type: precious metal multifinger
- Mounting: movable brackets
- Operating Life: 100 millions cycles typical
- Temperature Range: –55°C to +125°C
- Sine Vibration Resistance: 1.5 mm peak to peak (0-10Hz), 15g (10 Hz - 2000 Hz)
- Mechanical Shock Resistance: 50g- 11 ms - half sine
- Speed: 10 m/s max.
Buy the 115L 5,2E 502 W06017 VISHAY Precision Linear Transducer | myMectronic
Purchase the VISHAY 115L 5,2E 502 W06017 Precision Linear Transducer securely and efficiently online.
