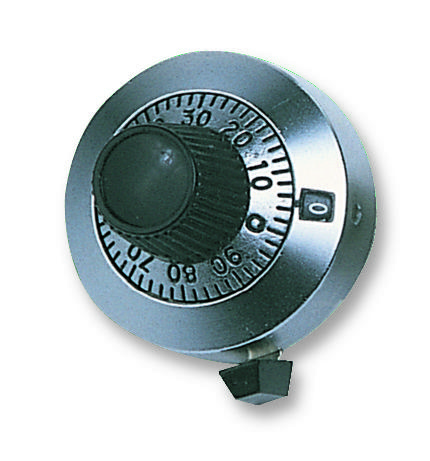

Vishay 11A11B10 Potentiometer Dial
The 11 series potentiometer dials from Vishay feature a single counter wheel and a graduated circular dial, allowing for precise adjustments over a total of 11 turns. They include a round vernier scale, a 25.4mm diameter counting dial, and are compatible with 1/4 inch or 1/8 inch shaft adapters. The dials are available in various finishes including black chrome with white markings, brushed chrome with black markings, and satin chrome with black or white markings. Designed for industrial applications, these dials offer durability and accurate readouts.
Vishay 11A11B10 Potentiometer Dial Specifications:
- Dimensions: 25.4 mm diameter
- Shaft compatibility: 1/4 inch or 1/8 inch shaft adapters
- Number of turns: 11
- Graduation: Circular dial with vernier scale
- Numeral size: 0.075 inches height, 0.013 inches width
- Graduation size: 0.040 inches length
- Material: Metal with chrome finishes (black, brushed, satin)
- Finish options: Black chrome, brushed chrome, satin chrome with black or white markings
- Weight: Max 0.7 oz (19.84 g)
- Operational: Free-running, no binds, with drive sleeve
- Drive sleeve: #2 - 56 spline socket set screw
- Mounting: Center set screw
- Rotation: 11 turns with graduated indicator
- Accuracy: Zero backlash, 0.004 inches per inch runout
- Environmental: Suitable for industrial environments
- Compliance: RoHS compliant
- Certifications: Various depending on finish
- Additional features: Vernier scale for precise adjustment, durable metals
- Packaging: Standard industrial packaging
- Model code designations: 11-A-11, 11-B-10, etc.
Buy the Buy Vishay Potentiometer Dial Part Number 11A11B10 Online
Enhance your control systems with Vishay potentiometer dials, offering 11 turns of precise adjustment in a robust metal construction. Available in several finishes, these industrial-grade dials feature a circular vernier scale and a 25.4mm diameter. Compatible with 1/4 inch or 1/8 inch shaft adapters, they ensure accurate readings and reliable performance. Ideal for industrial equipment, instrumentation, and automation systems, these dials deliver durability and precise calibration, making them essential components for demanding technical applications.
Buy Vishay 11A11B10 now and experience precise adjustments with durable, industrial-grade potentiometer dials.
Frequently Asked Questions
Where can I buy Vishay 11A11B10?
You can click on the BUY or RFQ button to purchase 11A11B10 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 11A11B10?
You can download the 11A11B10 datasheet or visit the Vishay website for support.
Who is the manufacturer of 11A11B10?
Vishay
