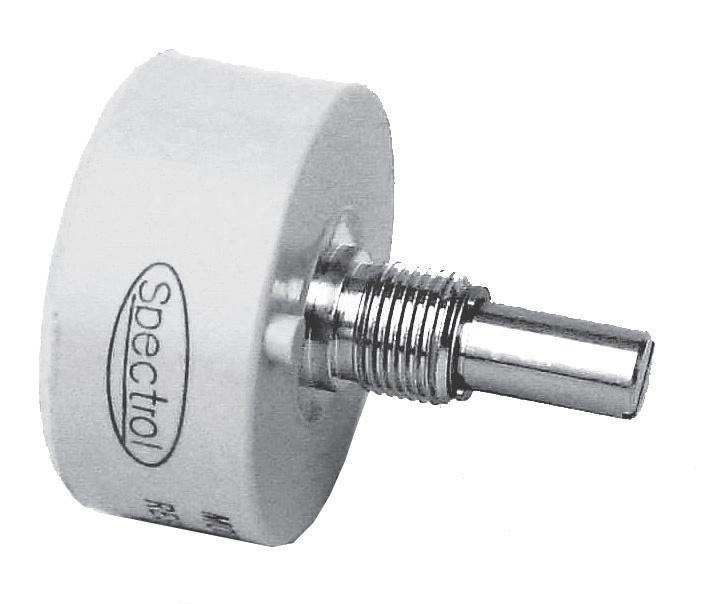

Vishay 13200502 Single Turn Wirewound Potentiometer

Vishay 13200502 Single Turn Wirewound Potentiometer Specifications:

• Sensor type: ROTATIONAL, single turn wirewound
• Output type: Output byturrets
• Market appliance: Industrial
• Dimensions: 15/16"(33.3 mm)
• Total Resistance Tolerance: 5 to 20 k, ± 3 % or ± 5 %
• Special Total Resistance: to 35 k, ± 1 % or ± 3 %
• Linearity (independent): ± 1.0 % (5 to 20), ± 0.5 % (200 and above)
• Noise: 100ENR
• Power Rating: 2.75 W at 40 °C, derated to zero at 125 °C
• Electrical Angle: 352° ± 2° (continuous rotation)
• Insulation Resistance: 1000 M minimum at 500 VDC
• Dielectric Strength: 1000 VRMS, 60 Hz
• Absolute Minimum Resistance: 0.5 W or 1.0 % of total resistance
• Minimum Voltage: 0.5 % maximum
• Temperature Coefficient of Resistance: Refer to standard resistance element data
• Housing: Molded glass filled thermoplastic
• Rear Lid: Glass filled thermoset plastic
• Shaft: Stainless steel, non-magnetic
• Terminals: Brass, plated for solderability
• Mount Hardware: Steel, nickel plated; Brass, nickel plated
• Vibration: 15 g thru 2000 Hz
• Shock: 50 g
• Salt Spray: 48 h
• Rotational Life: 500 000 shaft revolutions
• Operating Temperature Range: - 55 °C to + 125 °C
• Rotation: 360° (continuous) or 340° ± 5° (stops)
• Bearing Type: Sleeve
• Starting Torque: 1.0 oz.- in (72 g- cm)
• Running Torque: 0.7 oz.- in (50.40 g- cm)
• Shaft Runout (TIR): 0.002" (0.05 mm)
• Pilot Dia. Runout (TIR): 0.003" (0.08 mm)
• Lateral Runout (TIR): 0.005" (0.13 mm)
• Shaft End Play: 0.008" (0.20 mm)
• Shaft Radial Play: 0.003" (0.08 mm)
• Weight: 1.0 oz. maximum (28.35g)
• Stop Strength: 8.0 in- lbs (9.21 kg- cm) (stops version only)
