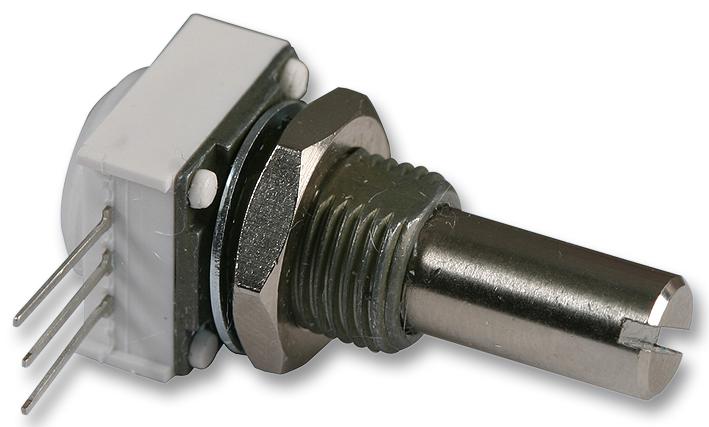

Vishay 14910A0BHSX10254KA Conductive Plastic Cermet Potentiometer
The Vishay Spectrol Conductive Plastic and Cermet Potentiometers are robust, RoHS-compliant components designed for precise adjustment in electronic circuits. Available in single, dual, and triple sections, they feature high rotational life of 50,000 cycles and low temperature coefficients of +150 ppm/°C for conductive plastic and improved stability for cermet elements. These potentiometers provide accurate resistance ranges from 1kΩ to 2MΩ, with a 270° rotation, and are suitable for industrial applications requiring reliable mechanical and electrical performance with excellent sealing IP64 rated for harsh environments.
Vishay 14910A0BHSX10254KA Conductive Plastic Cermet Potentiometer Specifications:
- Resistance Range: 148 - 1kΩ to 1MΩ, 149 - 100Ω to 2MΩ
- Tolerance: 10% for both models; 20% on request for non-linear types
- Linearity: ±5% typical, independent
- Electrical Travel: 270° + 10° without rotary switch, 240° + 10° with switch
- Power Rating: 0 W at 70-150°C, 1 W for non-linear versions
- Mechanical Travel: 300° + 5°
- Operating Temperature: -40°C to +125°C
- Sealing: IP64
- End Resistance: Max 40Ω per end
- Effective Rotation: 270° with ±10° tolerance
- Mechanical Torque: 0.2 to 3.0 oz-in (single), 0.3 to 4.5 oz-in (dual, triple)
- Switching Power Max: 62.5 VA, Max Current 2A, Max Voltage 30V
- Contact Resistance: 30mΩ
- Dielectric Strength: 1000 Vac terminal to terminal, 2000 Vac terminal to bushing
Buy the Vishay 14910A0BHSX10254KA – Reliable Potentiometer for Industrial Applications
Purchase the Vishay 14910A0BHSX10254KA potentiometer online today and benefit from high rotational life, precise resistance adjustment, and robust IP64 sealing. Perfect for industrial electronics, these potentiometers provide reliable performance in harsh environments. With resistance ranges up to 2MΩ, 270° rotation, and RoHS compliance, they are ideal for precision control and adjustment in manufacturing, instrumentation, and automation projects. Ensure your systems operate smoothly with this high-quality, easily integrable component available for quick online ordering.
Order your Vishay series 14910A0BHSX10254KA potentiometer today and enhance your electronic projects with dependable, RoHS-compliant performance.
Frequently Asked Questions
Where can I buy Vishay 14910A0BHSX10254KA?
You can click on the BUY or RFQ button to purchase 14910A0BHSX10254KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 14910A0BHSX10254KA?
You can download the 14910A0BHSX10254KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 14910A0BHSX10254KA?
Vishay
