Vishay 14910A0BHSX10501KA high-precision potentiometer
This high-quality potentiometer features a conductive plastic element with quiet electrical output, low temperature coefficient (+150 ppm/°C), and robust construction for reliability. Options include single, dual, or triple sections with solder lug terminals, suitable for precise control applications. Mechanical travel is 300° ± 5°, with an operating torque of 0.2 to 4.5 oz.-inch depending on sections. It withstands an operating temperature range of -40°C to +125°C, offers IP64 sealing, and complies with RoHS standards. Ideal for industrial and electronic control systems requiring durable and precise potentiometers.
Vishay 14910A0BHSX10501KA high-precision potentiometer Specifications:
- Resistance Range: 1kΩ to 1MΩ (linear), 500Ω to 500kΩ (non-linear)
- Tolerance: 10% (linear), 20% on request (non-linear)
- Linearity: ±5% (typical)
- End Resistance: 4Ω maximum each end
- Power Rating: 0.5 W at 70°C, 1 W at 70°C
- Effective Rotation: 270° +10° without switch, 240° +10° with switch
- Maximum Continuous Voltage: 350 VAC across end terminals
- Dielectric Withstanding Voltage: 750 VAC at sea level
- Mechanical Travel: 300° ± 5°
- Operating Torque: 0.2 to 4.5 oz.-inch depending on sections
- Temperature Range: -40°C to +125°C
- Sealing: IP64
- Electrical Elements: Pure Sn terminals, Gold plated switch elements
- Weight: single approx. 0.19 oz., dual approx. 0.27 oz., triple approx. 0.35 oz.
- Environmental: TCR - 150 ppm/°C, load life 1000 hours, mechanical endurance 50,000 cycles

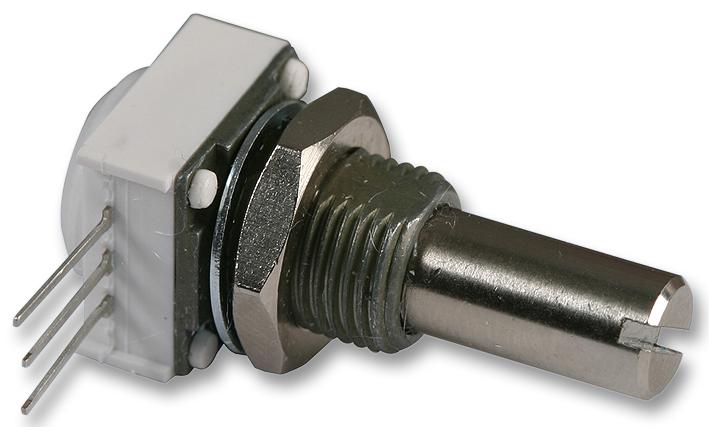

Buy the Buy Vishay Spectrol Conductive Plastic Potentiometer Part Number 14910A0BHSX10501KA Online
Discover the durable and precise Vishay spectral potentiometer available online with easy ordering. Featuring a conductive plastic or cermet element, it offers low temperature coefficient (+150 ppm/°C), IP64 sealing, and a wide operating temperature range from -40°C to +125°C. Suitable for industrial controls, audio, and instrumentation, its robust construction ensures long-lasting performance. Available in single, dual, or triple sections with solder lug terminals, this potentiometer guarantees accurate, quiet electrical output and reliable operation for demanding applications. Purchase now for dependable performance in your projects.
Order your Vishay Series14910A0BHSX10501KA high-precision potentiometer today and enhance your control systems with reliable, long-lasting quality.
Frequently Asked Questions
Where can I buy Vishay 14910A0BHSX10501KA?
You can click on the BUY or RFQ button to purchase 14910A0BHSX10501KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 14910A0BHSX10501KA?
You can download the 14910A0BHSX10501KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 14910A0BHSX10501KA?
Vishay
