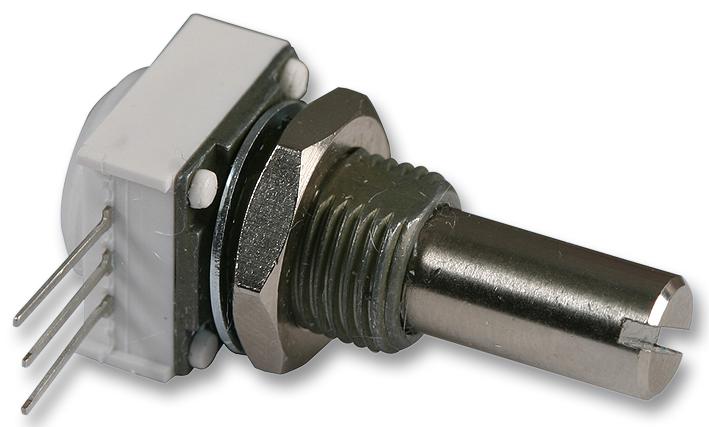

Vishay 14910F0GJSX10251KA Conductive Plastic and Cermet Potentiometers
The Vishay Spectrol 1/2 inch conductive plastic and cermet potentiometers offer high rotational life, RoHS compliance, and robust construction. These precision potentiometers feature low temperature coefficients and are suitable for applications requiring reliable adjustment controls. The models include options with conductive plastic or cermet elements, with resistance ranges from 100 Ohms to 2 Megaohms. Designed for diverse environments, they support up to 50,000 cycles, with a maximum operating temperature of 125°C, sealed IP64, and an electrical travel of approximately 238° to 300° for precise tuning and stability.
Vishay 14910F0GJSX10251KA Conductive Plastic and Cermet Potentiometers Specifications:
- Resistance Range: 1kΩ to 1MΩ for conductive plastic; 500Ω to 2MΩ for cermet
- Tolerance: ±10%, ±20%
- Power Rating: 0.5 W at 70°C for conductive plastic; 1 W at 70°C for cermet
- Mechanical Travel: 300° ± 5°
- Effective Rotation: 270° + 10° (without rotary switch), 240° + 10° (with rotary switch)
- Operating Temperature: -40°C to +125°C
- Sealing: IP64
- Rotational Life: 50,000 cycles
- Contact Resistance Variance: 1.5% to 3%
- Maximum Voltage: 350 Vac across end terminals
- End Resistance: 40Ω maximum
- Operating Torque: 0.2 to 4.5 oz.-in depending on section
- Bushing Torque: 2.1 in-lbs max
- Weight: 0.19 oz (single), 0.27 oz (dual), 0.35 oz (triple)
- Electrical Elements: Pure Sn; Switch Elements: Gold plated
- Environmental Ratings: Operating temperature -40°C to +125°C, Storage -55°C to +150°C
Buy the VISHAY Series Potentiometers: 1/2 Inch Conductive Plastic and Cermet – 14910F0GJSX10251KA
Purchase the Vishay 14910F0GJSX10251KA potentiometer online today to enjoy exceptional precision and durability. These high-quality, 1/2 inch potentiometers feature low temperature coefficients, sealed IP64 rating, and a long lifespan of 50,000 cycles, making them ideal for demanding electronic adjustment applications. With resistance up to 2 Megaohms and power ratings up to 1 watt, they provide reliable performance across a wide temperature range. Order now for quick delivery and top-tier performance in your projects!
Buy Vishay 14910F0GJSX10251KA now and experience unmatched reliability and performance with precise adjustment control and durable construction.
Frequently Asked Questions
Where can I buy Vishay 14910F0GJSX10251KA?
You can click on the BUY or RFQ button to purchase 14910F0GJSX10251KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 14910F0GJSX10251KA?
You can download the 14910F0GJSX10251KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 14910F0GJSX10251KA?
Vishay
