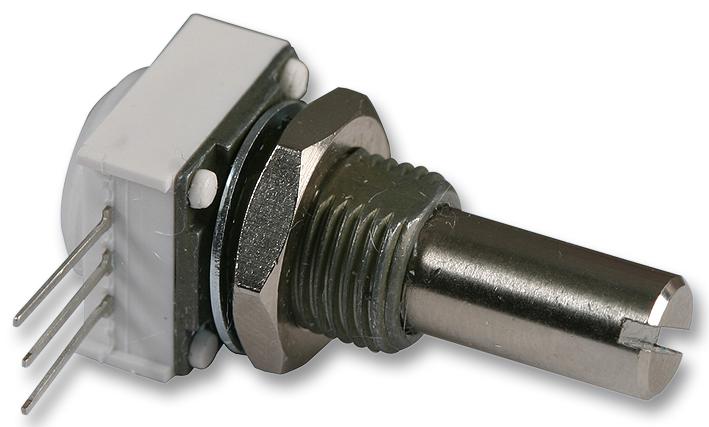

Vishay 14910F0GJSX10503KA Conductive Cermet Potentiometer
The Vishay Spectrol conductive plastic and cermet potentiometers are robust rotary devices designed for precision control in electronic applications. Featuring high rotational life of 50,000 cycles and RoHS compliance, these potentiometers incorporate conductive plastic or cermet elements for low electrical noise and low temperature coefficients. They offer adjustable effective rotation of 240° to 270°, resistance ranges from 100Ω to 2MΩ, and come with various terminal configurations including solder lugs. Suitable for industrial, automation, and control systems requiring reliable, long-lasting potentiometric components.
Vishay 14910F0GJSX10503KA Conductive Cermet Potentiometer Specifications:
- Resistance Range: 100Ω to 2MΩ
- Resistance Tolerance: ±10%
- Linearity: ±5%
- Power Rating: 0.5W at 70°C, 1W at 70°C
- Effective Rotation: 240° to 270°
- Mechanical Travel: 300° ± 5°
- Operating Temperature: -40°C to +125°C
- Environmental Sealing: IP64
- End Resistance: 40Ω maximum each end
- Rotational Load Life: 50,000 cycles
- End Stop Torque: 2.1 in-lbs max
- Contact Resistance Variation: 1.5% of total resistance
- Dielectric Withstanding Voltage: 750 VAC (sea level)
- Operating Voltage: 350 VAC across end terminals
- Switching Power Max: 62.5 VA
- Switching Current Max: 2A
- Operating Temperature: -40°C to +85°C
- Sealing: IP64
Buy the Buy Vishay Spectrol Potentiometers Part Number 14910F0GJSX10503KA Online
Order Vishay Spectrol conductive plastic and cermet potentiometers with resistance up to 2 megaohms, durability for 50,000 cycles, and IP64 sealing today. Perfect for industrial automation, control units, and precision electronics. Experience high reliability, low noise, and stable performance with RoHS compliance. Our online store provides fast, secure purchasing options. Enhance your control systems with these high-quality rotary potentiometers designed for demanding environments. Shop now to secure reliable, long-lasting electronic components for your projects.
Get Vishay Spectrol potentiometers with precise control and long-lasting durability today—ideal for industrial automation and control systems.
Frequently Asked Questions
Where can I buy Vishay 14910F0GJSX10503KA?
You can click on the BUY or RFQ button to purchase 14910F0GJSX10503KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 14910F0GJSX10503KA?
You can download the 14910F0GJSX10503KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 14910F0GJSX10503KA?
Vishay
