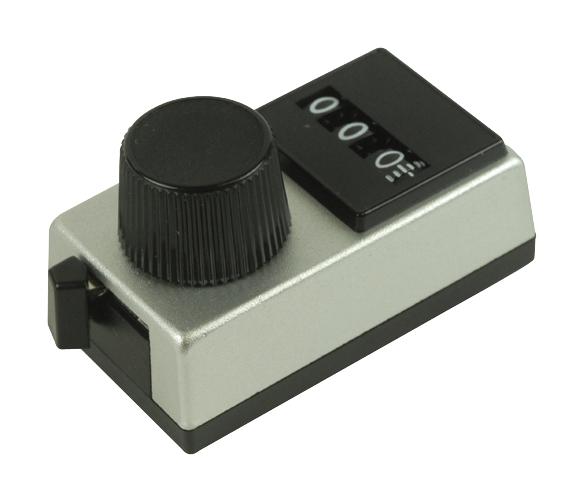

Vishay 15A11B10 Rectangular Dial Indicator
The Vishay 15A11B10 is a precision rectangular dial indicator engineered for demanding industrial environments. This dial features a black background with white numerals, ensuring excellent readability. It's designed with a spring detented knob that can be removed to expose hex socket set screws for direct mounting to the component shaft. Available with various shaft adapter sizes, including 1/4” and 1/8”, and with options for open or clear plastic window bezels, this dial provides versatility for diverse applications. The dial registers counts up to 999 for 3-digit models and 9999 for 4-digit models, offering accurate measurement capabilities. Its robust construction and clear display make it ideal for process monitoring and control in industrial settings.
Vishay 15A11B10 Rectangular Dial Indicator Specifications:
- Sensor Type: DIALS
- Market Appliance: Industrial
- Numerals: White on black background, 0.130" H (3.30 cm)
- Mounting: Spring detented knob removable for direct mounting
- Weight: 1.6 oz. (45.36g)
- Shaft Adapter: [1] /4", [1] /8", or 6 mm
- Bezel Options: Open, clear plastic window, black anodize with white trim, satin clear anodize
- Material: Black anodize finish
- Operation (3 digit): Left digit: Complete revolutions; Right two digits: Percent of revolution; Total count: 999
- Operation (4 digit): Left two digits: Complete revolutions; Right two digits: Percent of revolution; Total count: 9999
- Accuracy: 0.2 % of a revolution
- Phasing: Dial phased by rotating component shaft
- Shaft Diameter: [1] /4" dia., [1] /8" dia., 6 mm dia.
- Dimensions: 25.4 mm x 49.5 mm
- Material Categorization: See www.vishay.com/doc?99912
