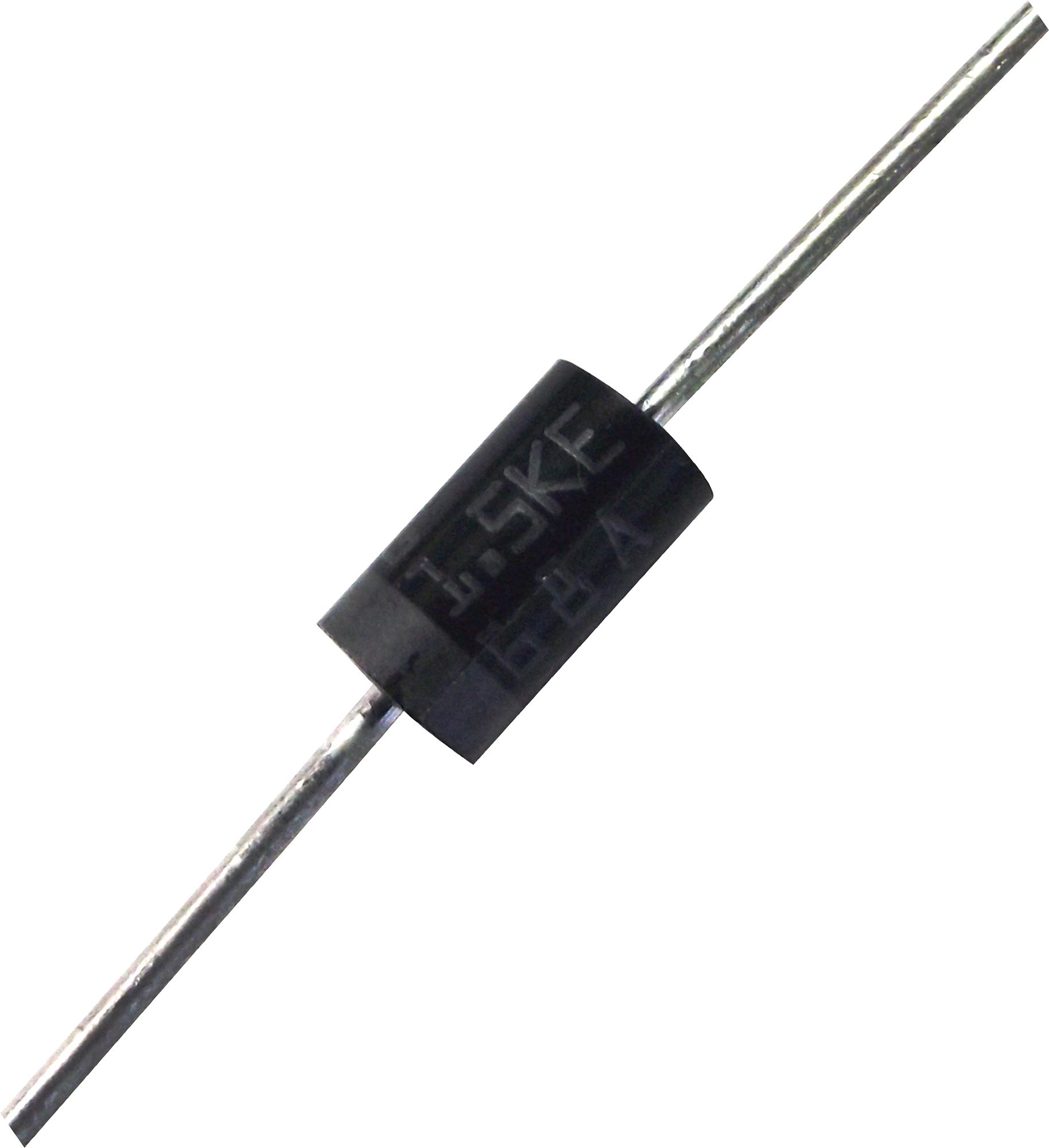

Vishay 15KE160CAE354 Transient Voltage Suppressor
The 1.5KE series is a line of transient voltage suppressors (TVS) designed for high-speed voltage transient suppression in sensitive electronics. With peak pulse power of 1500 W and a response time effectively instantaneous, these devices safeguard ICs, MOSFETs, sensors, and complex electronic circuits from voltage spikes caused by lightning, inductive switching, or line surges. Available as uni-directional or bi-directional with various voltage ratings, they meet RoHS and AEC-Q101 standards, ensuring reliability in industrial, automotive, telecommunications, and consumer electronics applications.
Vishay 15KE160CAE354 Transient Voltage Suppressor Specifications:
- Peak pulse power: 1500 W at 10/1000 us waveform
- Working voltage range: 6.8 V to 540 V (uni-directional), 6.8 V to 220 V (bi-directional)
- Maximum stand-off voltage: 5.8 V to 459 V (uni-directional), 5.8 V to 185 V (bi-directional)
- Peak pulse current: up to 200 A (unidirectional)
- Operating junction temperature: -5°C to +175°C
- Package: Case style 1.5KE with epoxy molded body
- Response time: Effectively instant (~1 x 10^-9 sec)
- Termination: Matte tin plated leads, solderable according to J-STD-002
- Compliance: RoHS, AEC-Q101 qualified
- Thermal resistance junction to ambient: approx. 75°C/W
- Case dimensions: Approximately 0.975 in x 0.285 in (25.4 mm x 7.2 mm), lead length 0.375 in (9.5 mm)
Buy the Vishay Series 1.5KE Transient Voltage Suppressor: 15KE160CAE354
Secure your sensitive electronics with Vishay 15KE160CAE354 Transient Voltage Suppressor. Designed to protect against high-power voltage transients, it offers rapid response, up to 1500 W peak pulse power, and robust construction to ensure reliable performance. Ideal for automotive, industrial, telecommunication, and consumer applications, this TVS diode safeguards devices from lightning surges and inductive switching. Easy to integrate with solderable leads, RoHS compliance, and AEC-Q101 qualification, making it the perfect choice for durable, high-reliability surge suppression.
Get Vishay 15KE160CAE354 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay 15KE160CAE354?
You can click on the BUY or RFQ button to purchase 15KE160CAE354 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 15KE160CAE354?
You can download the 15KE160CAE354 datasheet or visit the Vishay website for support.
Who is the manufacturer of 15KE160CAE354?
Vishay
