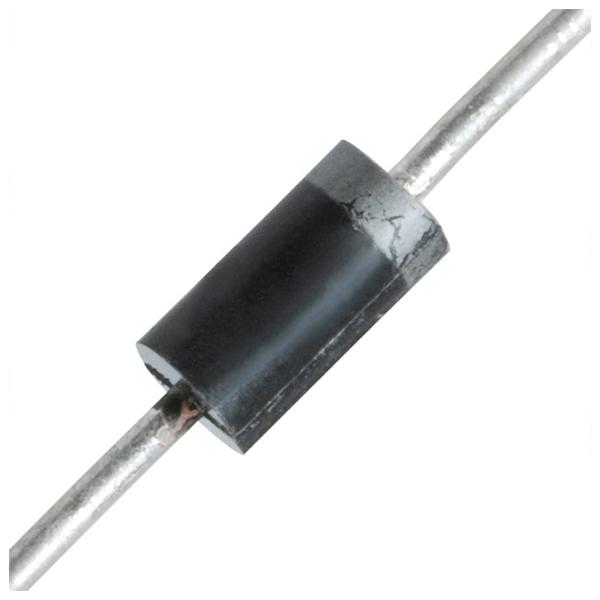

Vishay 1N4756ATAP Zener Diode
The Vishay 1N4756A-TAP is a silicon planar power Zener diode specifically engineered for stabilizing and clipping circuits requiring high power ratings. Its construction utilizes a single silicon planar design, offering robust performance and reliability. Qualified under AEC-Q101 standards, this diode is suitable for demanding automotive and industrial applications. The device provides a standard Zener voltage tolerance of ±5%, ensuring predictable and consistent voltage regulation. It is available in a DO-41 package and is designed for secure and efficient power management in various electronic systems.
Vishay 1N4756ATAP Zener Diode Specifications:
- VZrange nom.: 3.3 to 100 V
- Test current IZT: 2.5 to 76 mA
- VZspecification: Thermal equilibrium
- Int. construction: Single
- Power dissipation: 1300 mW (at 4 mm lead distance)
- Zener current: PV/VZ mA
- Thermal resistance junction to ambient air: 110 K/W (at 4 mm lead distance)
- Junction temperature: 175 °C
- Storage temperature range: -65 to +175 °C
- Forward voltage (max.): 1.2 V (at IF= 200 mA)
- Zener voltage range: 3.3 to 100 V
- Test current IZT1: 76 mA
- Test current IZT2: 1 mA
- Reverse leakage current: ≤ 100 μA
- Dynamic resistance f = 1 kHz: ≤ 10 Ω
- Surge current: ≤ 400 mA
- Regulator current: ≤ 276 mA
- Package: DO-41
- Weight: 310 mg
- Molding compound flammability rating: UL 94 V-0
- Moisture sensitivity level: MSL level 1 (J-STD-020)
- Soldering conditions: 260 °C/10 s at terminals
- Ordering code: 1N4728A to 1N4764A -series-TR
- Taped units per reel: 5000 per 13" reel
- Minimum order quantity: 25 000/box
- AEC-Q101 qualified: Yes
