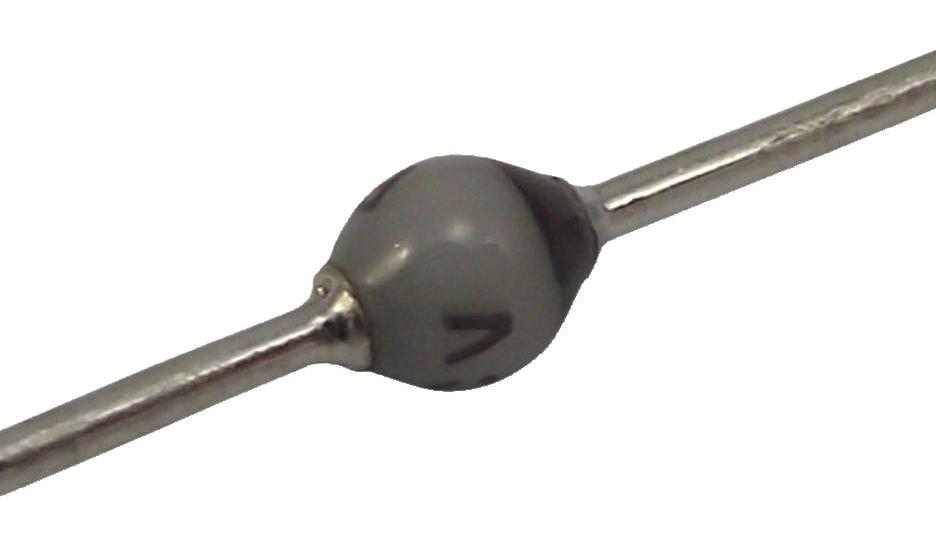

Vishay 1N5062GPE354 Glass Passivated Rectifier
The Vishay 1N5062GP-E3/54 is a glass passivated junction rectifier offering a robust solution for various power electronics applications. Its superectifier structure ensures high reliability, while the cavity-free glass passivated junction minimizes leakage current. This rectifier is ideal for use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes. It is AEC-Q101 qualified and RoHS compliant, ensuring adherence to industry standards. The device is packaged in a DO-204AC (DO-15) package and is available in both commercial and AEC-Q101 qualified grades.
Vishay 1N5062GPE354 Glass Passivated Rectifier Specifications:
- IF(AV): 1.0 A
- VRRM: 200 V, 400 V, 600 V, 800 V
- IFSM: 50 A
- IR: 5.0 μA
- VF: 1.2 V
- TJmax: 175 °C
- Package: DO-204AC (DO-15)
- Diode variations: Single die
- Material categorization: See www.vishay.com/doc?99912
- Solder dip: 275 °C max. 10 s, per JESD 22-B106
- AEC-Q101 qualified: Yes
- Polarity: Color band denotes cathode end
Buy the 1N5062GP-E3/54 VISHAY Glass Passivated Rectifier | myMectronic
Purchase the Vishay 1N5062GP-E3/54 rectifier securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Vishay 1N5062GPE354?
You can click on the BUY or RFQ button to purchase 1N5062GPE354 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 1N5062GPE354?
You can download the 1N5062GPE354 datasheet or visit the Vishay website for support.
Who is the manufacturer of 1N5062GPE354?
Vishay
