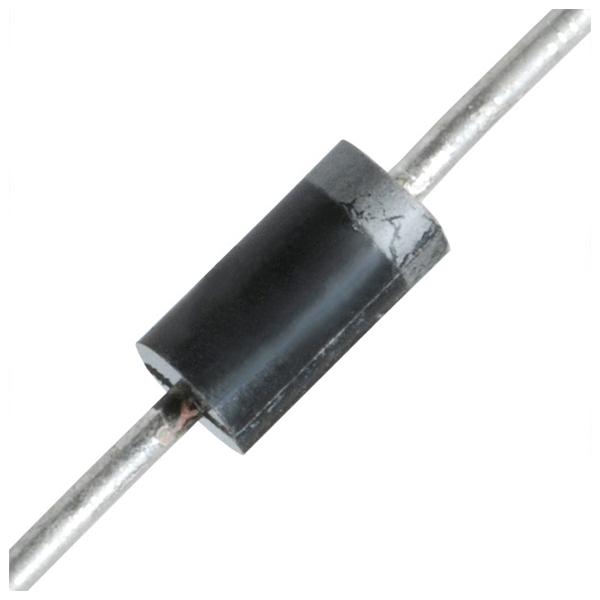

Vishay 1N5222BTR Silicon Zener Diode
The Vishay 1N5222B-TR is a silicon planar power Zener diode, ideal for voltage regulation and protection in various electronic circuits. Its robust design and AEC-Q101 qualification make it suitable for automotive and industrial applications. The diode provides stable Zener voltage, ensuring consistent performance and protecting sensitive components from voltage spikes. It's commonly used in power supplies, voltage regulators, and overvoltage protection circuits.
Vishay 1N5222BTR Silicon Zener Diode Specifications:
- VZrange nom.: 2.4 to 75 V
- Test current IZT: 1.7 to 20 mA
- VZspecification: Thermal equilibrium
- Int. construction: Single
- Material categorization: See www.vishay.com/doc?99912
- Power dissipation: 500 mW
- Zener current: Ptot/VZ mA
- Thermal resistance junction to ambient air: 300 K/W
- Junction temperature: 175 °C
- Storage temperature range: -65 to +175 °C
- Forward voltage (max.): 1.1 V
- Zener voltage range: 2.4 to 75 V
- Reverse leakage current: ≤ 100 μA
- Dynamic resistance: ≤ 30 Ω
- Temperature coefficient: ≤ -0.085 %/K
- Package: DO-35
- Weight: 125 mg
- Molding compound flammability rating: UL 94 V-0
- Moisture sensitivity level: MSL level 1
- Soldering conditions: 260 °C/10 s at terminals
Buy the 1N5222B-TR VISHAY Silicon Zener Diode | myMectronic
Purchase the Vishay 1N5222B-TR Zener diode securely and efficiently through our online platform.
Buy Now
