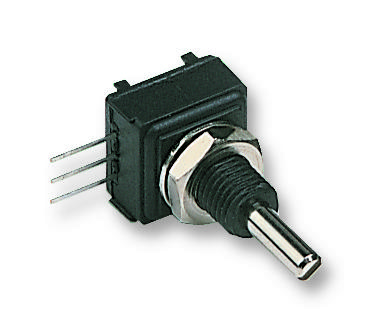

Vishay 248BBHS0XB25103ML Conductive Plastic Potentiometer
The Vishay Spectrol 248BBHS0XB25103ML is a 1/2" conductive plastic potentiometer designed for panel mounting applications. It provides a cost-effective solution with a power rating of 0.5W at 70°C and a resistance range from 500Ω to 1MΩ. This potentiometer is suitable for various industrial controls and instrumentation where a compact, adjustable resistance is required. It features a screwdriver slot for easy adjustment and is ROHS compliant.
Vishay 248BBHS0XB25103ML Conductive Plastic Potentiometer Specifications:
- Element type: Conductive plastic
- Total resistance range: 500Ω to 1 MΩ
- Resistance tolerance: ± 20 %
- Power rating: 0.5 W at 70 °C
- Circuit diagram: 1
- Temperature coefficient of resistance: ± 500 ppm/°C
- Limiting element voltage: 300 V
- Insulation resistance: 1000 MΩ minimum, 500 VDC
- Dielectric strength: 750 VRMS minimum 50 Hz/60 Hz
- Mechanical travel: 295° ± 5°
- Operating torque: 0.1 Ncm to 2 Ncm
- Weight: 8.3 g
- Temperature range: -55 °C to +125 °C
- Climatic category: 55/125/4
- Sealing: IP50
Buy the 248BBHS0XB25103ML VISHAY Conductive Plastic Potentiometer | myMectronic
Purchase the Vishay 248BBHS0XB25103ML potentiometer securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Vishay 248BBHS0XB25103ML?
You can click on the BUY or RFQ button to purchase 248BBHS0XB25103ML from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 248BBHS0XB25103ML?
You can download the 248BBHS0XB25103ML datasheet or visit the Vishay website for support.
Who is the manufacturer of 248BBHS0XB25103ML?
Vishay
