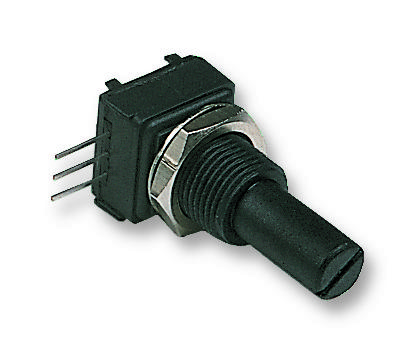

Vishay 248FGJSPXB25253MA Conductive Plastic Potentiometer
The Vishay Spectrol 248FGJSPXB25253MA is a 1/2" conductive plastic potentiometer, engineered for reliable performance in diverse applications. Featuring a linear taper and a resistance range of 500Ω to 1MΩ, it provides accurate resistance adjustment. Its robust construction and operating temperature range of -55°C to +125°C make it suitable for demanding environments. Commonly used in industrial equipment, consumer electronics, and automotive systems, this potentiometer ensures precise control and functionality.
Vishay 248FGJSPXB25253MA Conductive Plastic Potentiometer Specifications:
- Model: 248
- Element Type: Conductive Plastic
- Resistance Range: 500Ω to 1 MΩ
- Resistance Tolerance: ± 20 %
- Power Rating: 0.5 W at 70 °C
- Temperature Coefficient of Resistance: ± 500 ppm/°C
- Limiting Element Voltage: 300 V
- Insulation Resistance: 1000 MΩ minimum, 500 VDC
- Dielectric Strength: 750 VRMS minimum 50 Hz / 60 Hz
- Mechanical Travel: 295° ± 5°
- Operating Torque: 0.1 Ncm to 2 Ncm
- End Stop Torque: 35 Ncm (50 oz.-inch)
- Max. Tightening Torque: 150 Ncm
- Weight: 8.3 g
- Temperature Range: -55 °C to +125 °C
- Climatic Category: 55 / 125 / 4
- Sealing: IP 50
