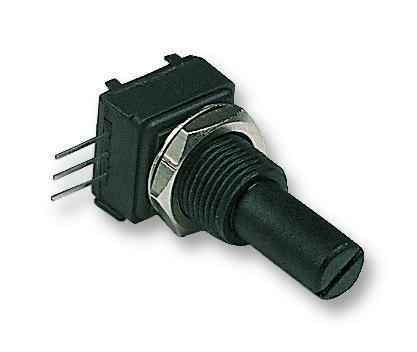

Vishay 248FGJSPXB25503MA Conductive Plastic Potentiometer
The Vishay Spectrol 248 and 249 series potentiometers are cost-effective panel and PCB-mount devices with linear and logarithmic tapers. Featuring conductive plastic and cermet elements respectively, these potentiometers offer resistance ranges from 500Ω to 1MΩ, with ratings of 0.5 W and 1 W at 70°C. They have a total electrical travel of approximately 295°, IP50 sealing, and operating temperature from -55°C to +125°C. Suitable for precise adjustment in electronic and industrial applications, they meet CECC 41000 and IEC 60393-1 standards for durability and accuracy.
Vishay 248FGJSPXB25503MA Conductive Plastic Potentiometer Specifications:
- Element type: Conductive plastic (Model 248), Cermet (Model 249)
- Resistance range: 500Ω to 1MΩ
- Power rating: 0.5 W at 70°C (Model 248), 1 W at 70°C (Model 249)
- Total resistance tolerance: ±20% (on request ±10%)
- Electrical travel: approximately 295° ± 5°
- Environmental temperature range: -55°C to +125°C
- Sealing level: IP50
- Operating torque: 0.1 to 2 Nm
- Maximum end resistance: 2 Ω
- Shock resistance: 3 shocks in 3 directions at 50g, 11ms
- Vibration: 10Hz to 55Hz at 1g acceleration
- Construction includes slotted or round bushings, metal or plastic shafts
- Standard resistance series: 12.5, 25, 50, 100, 250K, 500K, 1M Ω
Buy the Vishay Series 248 Conductive Plastic Potentiometer: 248FGJSPXB25503MA
Enhance your electronic projects or industrial controls with the Vishay 248FGJSPXB25503MA potentiometer. Featuring corrosion-resistant construction, wide temperature operation, and precise resistance adjustment, this cost-effective component ensures robust performance. Designed for PCB mounting and panel applications, it meets industry standards for reliability and durability. Available in a variety of resistance values and configurations, order online today for fast delivery and quality assurance. Ideal for engineers seeking high-quality, dependable potentiometers for sensitive applications.
Get Vishay 248FGJSPXB25503MA potentiometer today—built for precision and long-lasting durability in electronic and industrial systems.
Frequently Asked Questions
Where can I buy Vishay 248FGJSPXB25503MA?
You can click on the BUY or RFQ button to purchase 248FGJSPXB25503MA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 248FGJSPXB25503MA?
You can download the 248FGJSPXB25503MA datasheet or visit the Vishay website for support.
Who is the manufacturer of 248FGJSPXB25503MA?
Vishay
