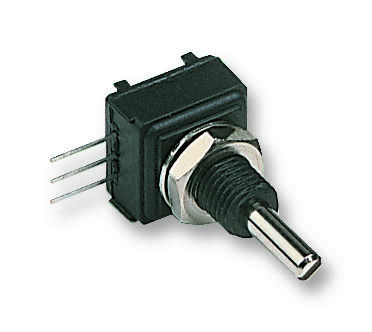

Vishay 249BBHS0XB25104KA Conductive Plastic Cermet Potentiometer
The Vishay Spectrol 249BBHS0XB25104KA is a 1/2" conductive plastic or cermet potentiometer, ideal for applications requiring a compact and cost-effective solution. It's designed for PCB mounting and offers a wide range of resistance values and taper options. The potentiometer's robust construction and reliable performance make it suitable for industrial equipment, consumer electronics, and automotive applications. It's available with various bushing, shaft, and lead configurations to meet specific design requirements. The device is tested according to CECC 41000 or IEC 60393-1 standards, ensuring consistent quality and performance.
Vishay 249BBHS0XB25104KA Conductive Plastic Cermet Potentiometer Specifications:
- Model: 249
- Element Type: Cermet
- Resistance Range: 500Ω to 1 MΩ
- Resistance Tolerance: ±20%
- Power Rating: 1 W at 70 °C
- Linearity: ± 5%
- Limiting Element Voltage: 300 V
- Insulation Resistance: 1000 MΩ minimum, 500 VDC
- Dielectric Strength: 750 VRMS minimum 50 Hz / 60 Hz
- Mechanical Travel: 295° ± 5°
- Operating Torque: 0.1 Ncm to 2 Ncm
- End Stop Torque: 35 Ncm (50 oz.-inch)
- Max. Tightening Torque: 150 Ncm
- Weight: 8.3 g
- Temperature Range: -55 °C to +125 °C
- Climatic Category: 55 / 125 / 4
- Sealing: IP 50
Buy the 249BBHS0XB25104KA VISHAY Conductive Plastic Cermet Potentiometer | myMectronic
Purchase the Vishay 249BBHS0XB25104KA potentiometer securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Vishay 249BBHS0XB25104KA?
You can click on the BUY or RFQ button to purchase 249BBHS0XB25104KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 249BBHS0XB25104KA?
You can download the 249BBHS0XB25104KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 249BBHS0XB25104KA?
Vishay
