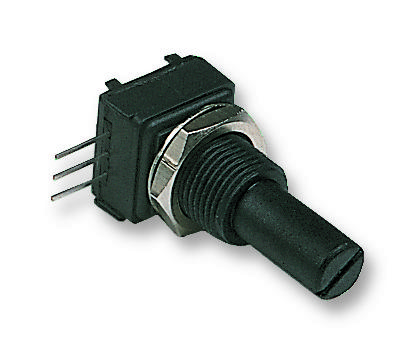

Vishay 249FGJSPXB25103KA Conductive Plastic Cermet Potentiometer
The Vishay Spectrol 249FGJSPXB25103KA is a 1/2" (12.7 mm) conductive plastic or cermet potentiometer, engineered for cost-effective panel mounting and PCB integration. Available with linear or logarithmic taper, this potentiometer provides precise resistance adjustment for a wide range of applications. Its robust construction and reliable performance make it suitable for industrial equipment, consumer electronics, and automotive systems. The potentiometer's features include a cost-effective design, PCB mounting capability, and compliance with CECC 41000 or IEC 60393-1 standards. It is available in various resistance ranges and shaft configurations to meet specific application requirements.
Vishay 249FGJSPXB25103KA Conductive Plastic Cermet Potentiometer Specifications:
- Model: 249
- Element type: Cermet
- Total resistance range: 500 to 1 M
- Resistance tolerance: ± 20 %
- Power rating: 1 W at 70 °C
- Temperature coefficient of resistance: ± 150 ppm/°C
- Limiting element voltage: 300 V
- Insulation resistance: 1000 M minimum, 500 VDC
- Dielectric strength: 750 VRMS minimum 50 Hz / 60 Hz
- Mechanical travel: 295° ± 5°
- Operating torque: 0.1 Ncm to 2 Ncm
- End stop torque: 35 Ncm (50 oz.-inch)
- Max. tightening torque: 150 Ncm
- Weight: 8.3 g
- Temperature range: -55 °C to +125 °C
- Climatic category: 55 / 125 / 4
- Sealing: IP 50
