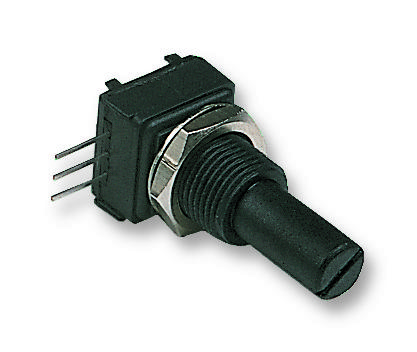

Vishay 249FGJSPXB25503KA Conductive Plastic Cermet Potentiometer
The Vishay Spectrol 249FGJSPXB25503KA is a 1/2" conductive plastic or cermet potentiometer, ideal for applications requiring a compact and cost-effective solution. It offers a wide range of resistance values and taper options, making it suitable for diverse industrial and consumer applications. The potentiometer's robust construction and reliable performance ensure long-term durability and consistent operation. It is commonly used in audio equipment, industrial controls, and automotive applications where precise resistance adjustment is critical.
Vishay 249FGJSPXB25503KA Conductive Plastic Cermet Potentiometer Specifications:
- Model: 249
- Element type: Cermet
- Total resistance range: 500 to 1 M
- Resistance tolerance: ± 20 %
- Power rating: 1 W at 70 °C
- Linearity: ± 5 %
- Limiting element voltage: 300 V
- Contact resistance variation: 5 % of the total resistance
- Insulation resistance: 1000 M minimum, 500 VDC
- Dielectric strength: 750 VRMS minimum 50 Hz / 60 Hz
- End resistance: 2 maximum each end
- Effective electrical travel: 265° ± 5°
- Mechanical travel: 295° ± 5°
- Operating torque: 0.1 Ncm to 2 Ncm
- End stop torque: 35 Ncm (50 oz.-inch)
- Max. tightening torque: 150 Ncm
- Weight: 8.3 g
- Temperature range: -55 °C to +125 °C
- Climatic category: 55 / 125 / 4
- Sealing: IP 50
Buy the 249FGJSPXB25503KA VISHAY Conductive Plastic Cermet Potentiometer | myMectronic
Purchase the Vishay 249FGJSPXB25503KA potentiometer securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Vishay 249FGJSPXB25503KA?
You can click on the BUY or RFQ button to purchase 249FGJSPXB25503KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 249FGJSPXB25503KA?
You can download the 249FGJSPXB25503KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 249FGJSPXB25503KA?
Vishay
