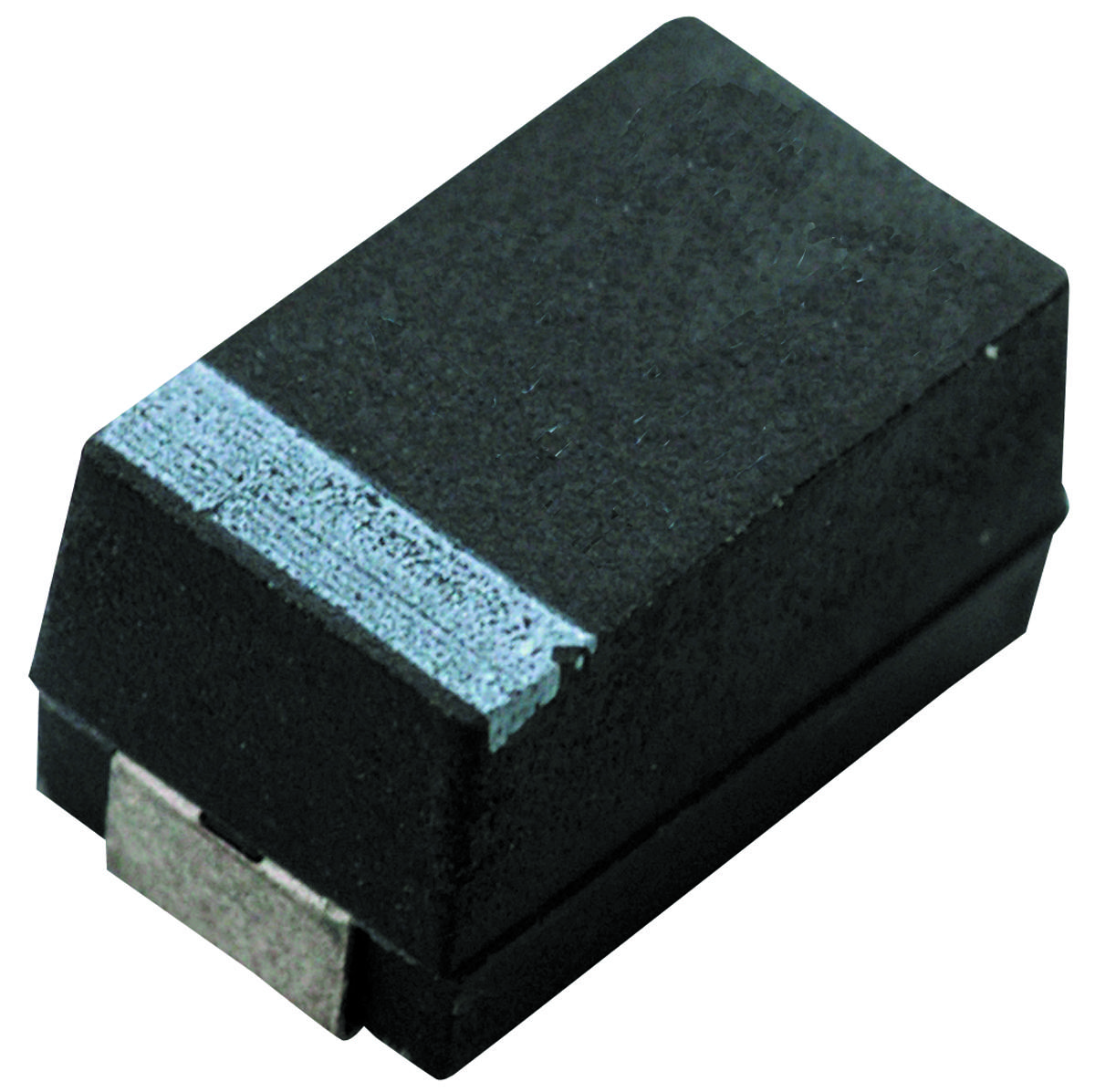

Vishay 293D227X06R3D2TE3 Solid Tantalum Capacitor
The 293D series Tantalum Capacitors are molded case, solid tantalum surface mount chip capacitors designed for industrial, telecommunications, and general-purpose applications. They feature 100% matte tin terminations, with available tin/lead options, and are compatible with high-volume automated pick-and-place equipment. These capacitors meet the mechanical and performance requirements of EIA-535-BAAC and are qualified to EIA-717 standards. They are optical character recognition qualified and have compliant terminations. Due to high market demand, delivery times may be extended, and the product is exempt from discounts.
Vishay 293D227X06R3D2TE3 Solid Tantalum Capacitor Specifications:
- Case sizes: 3016-18, 3528-21, 6032-28, 7343-31, 7343-43, 7830-50 series
- Operating Temperature: -55°C to +125°C (derating above 85°C)
- Capacitance Range: 0.10 pF to 1000 pF depending on series
- Voltage Range: 4V to 75V with derating guidelines
- Capacitance Tolerance: ±20%, ±10%, ±5%
- Leakage Current: Max 0.25 pA at rated voltage
- Dissipation Factor (DF): 4% to 30% depending on series and specifications
- Case codes: A, B, C, D, E for different sizes and ratings
- Termination: 100% matte tin standard; tin/lead options available
- RoHS and halogen free options; Moisture Sensitivity Level 1
- Conforms to industry standards: EIA-535-BAAC, EIA-717, MIL-STD-202
- Power Dissipation: up to 0.165 W depending on package
- Reflow Soldering Profile: Max ramp rate 3°C/sec, profile per J-STD-020
Buy the Vishay Series 293D Tantalum Capacitor: 293D227X06R3D2TE3
Purchase the Vishay Series 293D solid tantalum surface mount chip capacitor online now for your industrial and telecommunications applications. These capacitors offer high reliability, low leakage current, and compliance with industry standards such as EIA-535-BAAC and EIA-717. With various case sizes, voltage ratings up to 75V, and capacitance ranges down to 0.10 pF, they are suitable for high-volume automated assembly. Order today to secure fast delivery, premium quality, and exceptional performance for your electronic projects.
Order your Vishay Series 293D high-reliability tantalum capacitor today and ensure your industrial and telecom projects benefit from proven durability.
Frequently Asked Questions
Where can I buy Vishay 293D227X06R3D2TE3?
You can click on the BUY or RFQ button to purchase 293D227X06R3D2TE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 293D227X06R3D2TE3?
You can download the 293D227X06R3D2TE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of 293D227X06R3D2TE3?
Vishay
