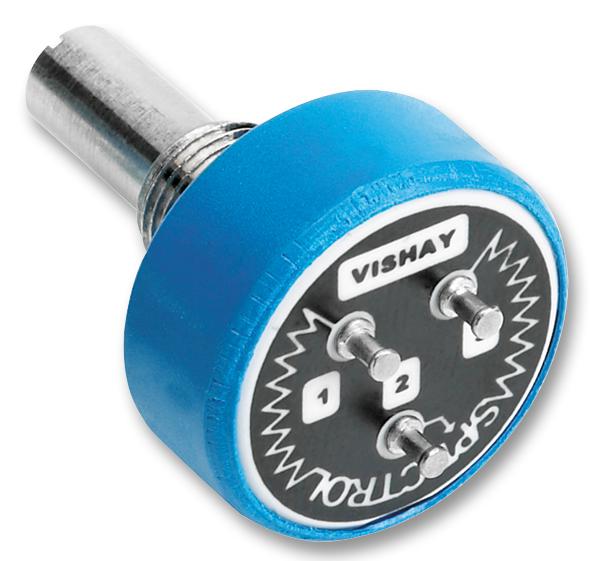

Vishay 357B2102MAB251S22 Conductive Plastic Potentiometer
The Vishay Spectrol Model 357 is a compact, 7/g inch diameter conductive plastic potentiometer designed for industrial applications. It features a single-turn or optional 340° rotation with mechanical stops, high resistance range from 1KΩ to 50KΩ, and tolerance variations of +20% or +10%. Suitable for various industrial control systems, it offers excellent linearity, smooth output, and robust construction with thermoplastic housing, brass bushing, and stainless steel shaft. Its electrical and mechanical specifications ensure reliable performance, long life, and compatibility with panel mounting standards. Ideal for precise, durable position sensing and control in automation and instrumentation equipment.
Vishay 357B2102MAB251S22 Conductive Plastic Potentiometer Specifications:
- Diameter: 7/g inch (22.2 mm)
- Resistance range: 1KΩ to 50KΩ
- Tolerance: +20% / +10%
- Linearity: 0.1% maximum
- Output smoothness: 0.1%
- TCR: 600 ppm/°C maximum
- Power rating: 7.0 W at 70°C, derated at higher temperatures
- Electrical travel: 340° with optional stops at 340° or 360°
- End voltage: 0.5% maximum
- Dielectric withstand voltage: 1000 VAC, 60 Hz
- Insulation resistance: 1000 MΩ at 500 V
- Rotation: continuous 360° or with stops at 340°
- Mounting: 3/8 - 32 UNEF - 2A
- Operating torque: maximum 3.68 mNm
- Shaft tolerance: runout 0.13 mm, end play 0.25 mm, radial play 0.13 mm
- Housing: thermoplastic, brass nickel plated, stainless steel shaft
- Terminals: turret type, solder plated
- Environmental: vibration 15g, shock 50g, operating temp -55°C to +125°C
- Material: thermoplastic housing, brass bushing, stainless steel shaft
Buy the Buy Vishay Spectrol Model 357 Potentiometer Part Number 357B2102MAB251S22 Online
Purchase the Vishay Spectrol 357 conductive plastic potentiometer online today and enjoy precise resistance control, durable construction, and high reliability. Designed for industrial automation, instrumentation, and control systems, it features resistance values from 1KΩ to 50KΩ, with tolerance options of +20% or +10%. Its robust thermoplastic housing, brass bushing, and stainless steel shaft ensure long-lasting performance. Easily mounted via standard panel fittings, it provides consistent linearity, smooth output, and stability over temperature. Order now to ensure your control systems operate with accuracy and dependability.
Buy Vishay Spectrol 357 potentiometer now and experience excellent durability, precise control, and reliable industrial performance with robust construction.
Frequently Asked Questions
Where can I buy Vishay 357B2102MAB251S22?
You can click on the BUY or RFQ button to purchase 357B2102MAB251S22 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 357B2102MAB251S22?
You can download the 357B2102MAB251S22 datasheet or visit the Vishay website for support.
Who is the manufacturer of 357B2102MAB251S22?
Vishay
