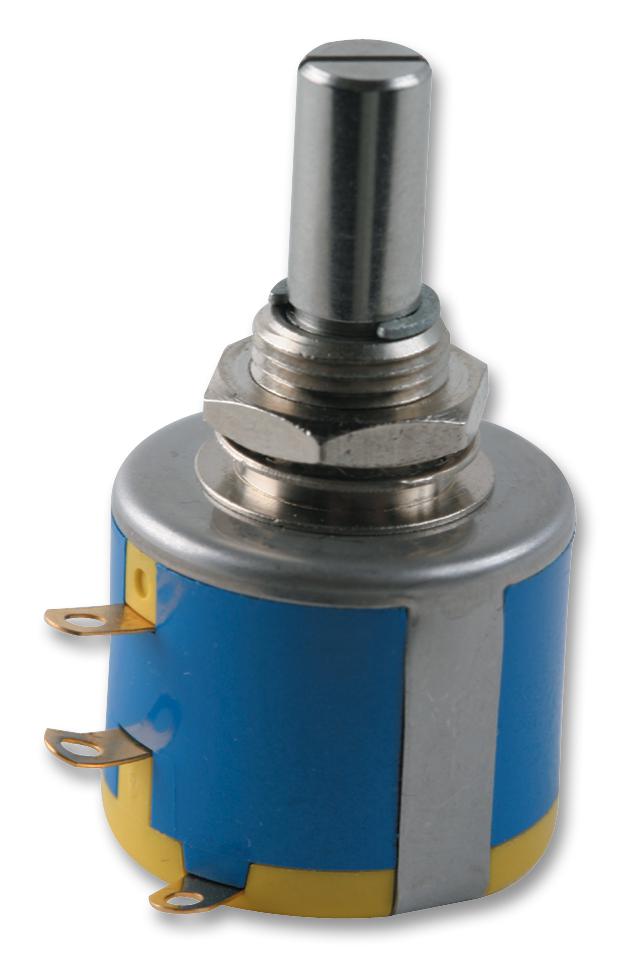

Vishay 534B1103JC8872 Multi Turn Wirewound Potentiometer
The Vishay Spectrol 534B1103JC8872 is a precision multi-turn wirewound potentiometer designed for industrial applications requiring accurate resistance adjustment and reliable performance. It features a robust construction with options for bushing or servo mount designs, special resistance tolerances, and rear shaft extensions. The potentiometer offers high torque, a center tap, and slipping clutch options, making it suitable for demanding environments. Its wirewound construction ensures excellent linearity and low noise, contributing to precise control in various industrial systems. Available in different resistance ranges and gang configurations, the 534B1103JC8872 provides versatility for diverse applications.
Vishay 534B1103JC8872 Multi Turn Wirewound Potentiometer Specifications:
- Sensor type: Rotational, multi turn wirewound
- Output type: Output byturrets
- Market appliance: Industrial
- Dimensions: 7/8" (22.2 mm)
- Bushing and servo mount designs: Available
- Resistance range - standard values (Model 533): 50 to 20 k
- Resistance range - standard values (Model 534): 100 to 100 k
- Resistance range - standard values (Model 535): 50 to 50 k
- Capability range (Model 533): 5 to 60 k
- Capability range (Model 534): 10 to 200 k
- Capability range (Model 535): 5 to 100 k
- Standard tolerance: ± 5%
- Linearity (independent): ± 0.25%
- Noise: 100ENR
- Rotation (electrical and mechanical) (Model 533): 1080°+10°-0°
- Rotation (electrical and mechanical) (Model 534): 3600°+10°-0°
- Rotation (electrical and mechanical) (Model 535): 1800°+10°-0°
- Power rating (at 70 °C) (Model 533): 1.0 W
- Power rating (at 70 °C) (Model 534): 2.0 W
- Power rating (at 70 °C) (Model 535): 1.5 W
- Insulation resistance: 1000 M minimum 500 VDC
- Dielectric strength: 1000 VRMS minimum 60 Hz
- Absolute minimum resistance: Not to exceed linearityx total resistance or 1, whichever is greater
- Temperature coefficient: 20ppm/°C (standard values, wire only)
- End voltage: 0.25% of total applied voltage, maximum
- Phasing: CCW endpoints - section 2 phased to section 1 within ± 2°
- Taps: Center tap only
- Resistance values (Model 533): 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K
- Resistance values (Model 534): 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K, 100K
- Resistance values (Model 535): 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K
- Style: Bushing or Servo
- Gangs: 1 or 2
- Ohmic Value Gangs No1: 470 = 47, 222 = 2.200, 103 = 10 k
- Tolerance on Ohmic Value: J = ± 5 %, F = ± 1 %
- Linearity: C = ± 0.25 %, D = ± 0.1 %, L = ± 0.2 %, E = ± 0.05 %
- Special Request: xxxx
