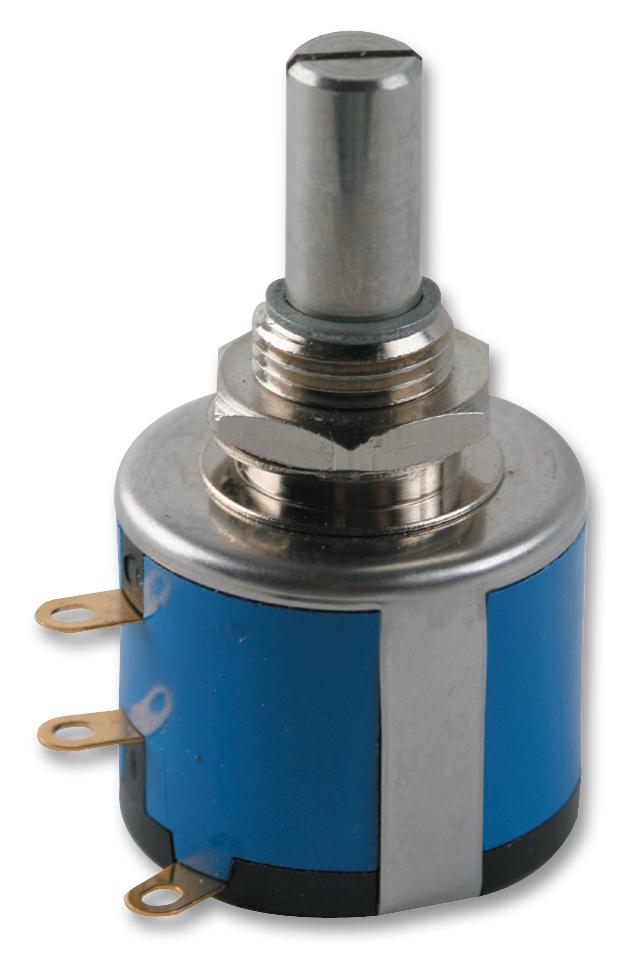

Vishay 534B1201JL Multi Turn Wirewound Potentiometer
Vishay Spectrol's 533, 534, and 535 series multi-turn wirewound potentiometers are precision devices engineered for demanding industrial environments. Featuring robust construction, these potentiometers provide high torque, excellent linearity, and a wide range of resistance values. They are commonly used in applications such as industrial automation, process control, and precision instrumentation where accurate and reliable position sensing and adjustment are critical. The potentiometers offer various shaft configurations, including bushing and servo mount designs, and can be customized with special resistance tolerances, markings, and front shaft extensions to meet specific application requirements. Their robust design and reliable performance make them a preferred choice for engineers seeking high-quality position sensing solutions.
Vishay 534B1201JL Multi Turn Wirewound Potentiometer Specifications:
- Sensor type: ROTATIONAL, multi turn wirewound
- Output type: Output byturrets
- Market appliance: Industrial
- Dimensions: 7/8" (22.2 mm)
- Bushing and servo mount designs: available
- Resistance range - standard values (Model 533): 50 to 20 k
- Resistance range - standard values (Model 534): 100 to 100 k
- Resistance range - standard values (Model 535): 50 to 50 k
- Capability range (Model 533): 5 to 60 k
- Capability range (Model 534): 10 to 200 k
- Capability range (Model 535): 5 to 100 k
- Standard tolerance: ± 5%
- Linearity (independent): ± 0.25%
- Noise: 100ENR
- Rotation (electrical and mechanical) (Model 533): 1080°+10°-0°
- Rotation (electrical and mechanical) (Model 534): 3600°+10°-0°
- Rotation (electrical and mechanical) (Model 535): 1800°+10°-0°
- Power rating (at 70 °C) (Model 533): 1.0 W
- Power rating (at 70 °C) (Model 534): 2.0 W
- Power rating (at 70 °C) (Model 535): 1.5 W
- Insulation resistance: 1000 Mminimum 500 VDC
- Dielectric strength: 1000 VRMSminimum 60 Hz
- Absolute minimum resistance: Not to exceed linearityx total resistance or 1,whichever isgreater
- Temperature coefficient: 20ppm/°C(standard values,wire only)
- End voltage: 0.25%of total applied voltage,maximum
- Phasing: CCW endpoints - section 2phased to section 1 within ± 2°
- Taps: Center taponly
- Resistance Values (533): 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K
- Resistance Values (534): 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K, 100K
- Resistance Values (535): 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K
- MODEL: 533, 534, 535
- STYLE: Bushing, Servo
- GANGS: 1, 2
