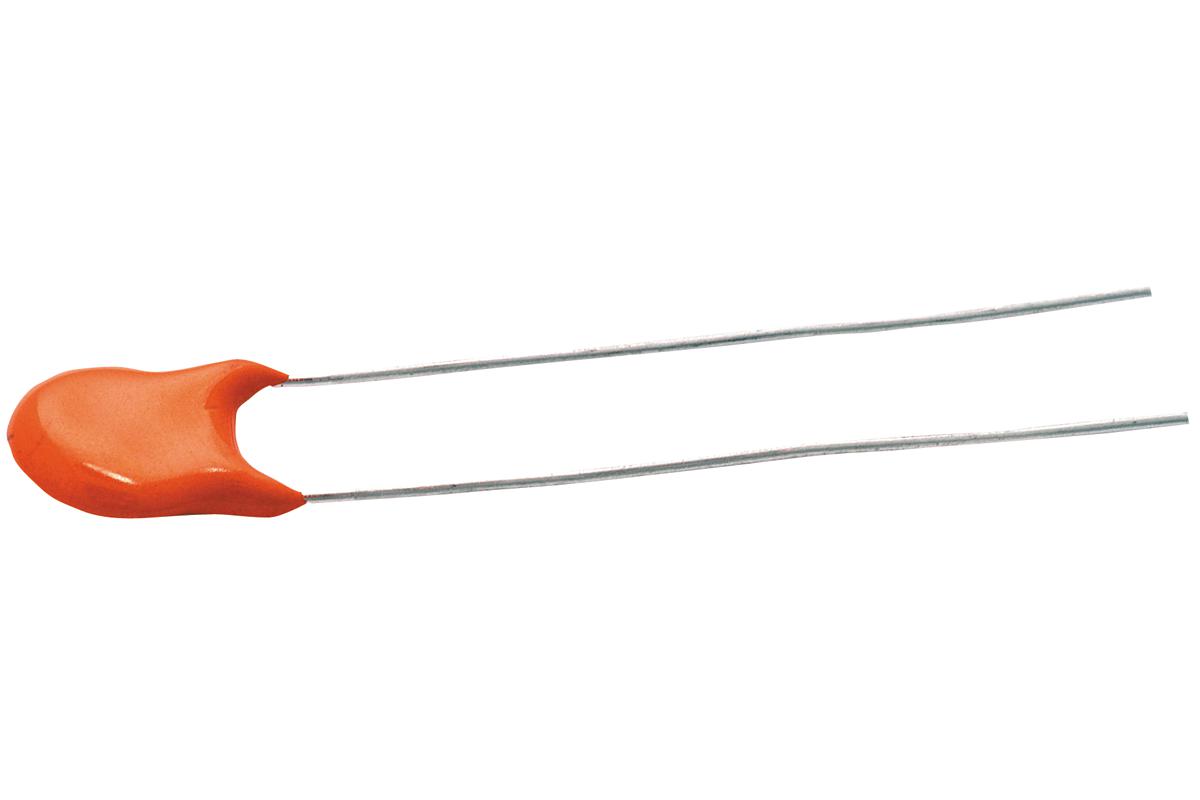

Vishay 561R10TCCQ47 High-Voltage Ceramic Capacitor
High-precision ceramic-disk capacitor designed for applications requiring high voltage tolerance. It offers 1000VAC durability with exceptionally tight tolerances, ensuring reliable performance in demanding environments.
Vishay 561R10TCCQ47 High-Voltage Ceramic Capacitor Specifications:
- Ceramic Class 1 dielectric
- Voltage (Voc): 1000 V
- Capacitance range: 1.0 pF to 680 pF
- Insulation resistance: Min. 1000 MΩ or 50,000 MΩ
- Tolerance on capacitance: +5%
- Dissipation factor: 0.1 % max. at 1 MHz; 1 V
- Temperature range: -55 to +125 °C
- Operating temperature: -55 to +105 °C
- Dielectric strength between leads: 2500 Vp, 2s
- Material: Ceramic COK, COG, U2J, M3K, S3N (Class 1)
- Mounting: Radial leads with lead spacing of 0.250" (6.35 mm) or 0.375" (9.5 mm)
- Dimension: Diameter varies with capacitance; typical length approximately 0.156" (4.0 mm) for small capacities
- Feature: Flame retardant epoxy resin coating (UL 94 V-0)
Buy the Vishay Series 561R High-Voltage Ceramic Capacitor: 561R10TCCQ47
Purchase the Vishay Series 561R high-precision ceramic capacitor online today to ensure your electronic circuits operate reliably under high voltage conditions. With voltage ratings up to 1000V and tight tolerances, this ceramic capacitor is ideal for temperature compensation, resonant circuits, and applications requiring stability and durability. Featuring ceramic Class 1 dielectric and flame-retardant epoxy coating, it provides excellent stability over temperature and voltage variations. Order now for fast delivery and experience dependable performance in critical applications.
Order your Vishay Series 561R high-voltage ceramic capacitor today and ensure your projects benefit from reliable, high-precision performance in demanding environments.
Frequently Asked Questions
Where can I buy Vishay 561R10TCCQ47?
You can click on the BUY or RFQ button to purchase 561R10TCCQ47 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 561R10TCCQ47?
You can download the 561R10TCCQ47 datasheet or visit the Vishay website for support.
Who is the manufacturer of 561R10TCCQ47?
Vishay
