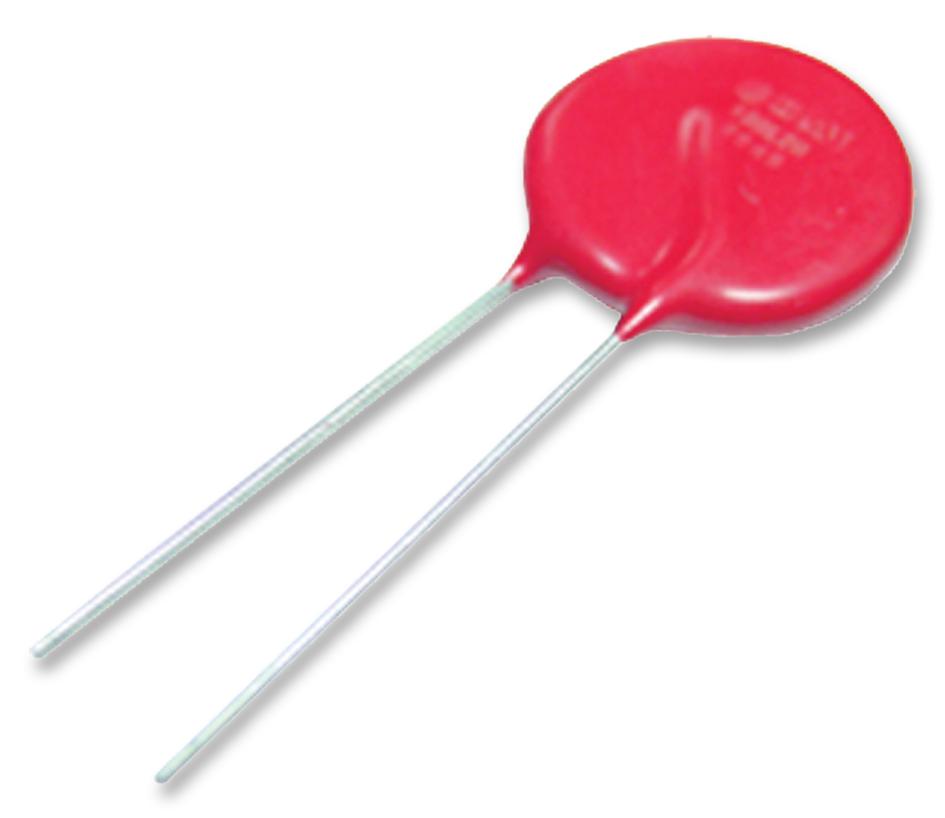

Vishay 564R60GAQ33 Ceramic Disc Capacitor
Vishay Cera-Mite offers the 564R series of low-loss, high-stability ceramic disc capacitors suitable for high-voltage applications like lighting ballasts, SMPS, and pulse circuits. These radial lead capacitors feature dielectric materials such as X7R, Z5U, and Y5V, with voltage ratings from 2 kV to 7.5 kV. They are RoHS compliant, with resin or epoxy coatings, and designed for reliable performance in operating temperatures from -25°C to +105°C. Their compact sizes and high capacitance make them ideal for demanding electronic and industrial circuits.
Vishay 564R60GAQ33 Ceramic Disc Capacitor Specifications:
- Capacitance Range: 10 pF to 0.10 µF
- Voltage Ratings: 2kV to 7.5kV
- Dielectric Materials: X7R, Z5U, Y5V
- Operating Temperature Range: -25°C to +105°C
- Capacitor Type: Ceramic disc, radial leads
- Dimensions: Varies with model, typical lead spacing 0.250" (6.35mm) to 0.500" (12.7mm)
- Insulation Resistance: 10,000 MΩ at 2kV, up to 200,000 MΩ at 7.5kV
- Tolerance: +10%, +20%, -20%, to +80%
- Dissipation Factor: Class 1: max 0.2%, Class 2: max 2.0% at specified frequency
- Certifications: RoHS compliant, UL 94 V-0 coating
Buy the Buy Vishay Ceramic Disc Capacitors Part Number 564R60GAQ33 Online
Purchase Vishay ceramic disc capacitors online for high-voltage, stability, and low-loss performance. These radial lead capacitors are ideal for lighting ballasts, SMPS, and pulsed circuits, delivering excellent reliability in operating temperatures from -25°C to +105°C. With voltage ratings up to 7.5kV and capacitance from 10 pF to 0.10 µF, they meet RoHS standards, feature high insulation resistance, and are coated with fire-retardant epoxy for safety and durability. Order now for superior electronic performance.
Get Vishay 564R60GAQ33 today—built for high-voltage stability and reliable performance in industrial circuits.
Frequently Asked Questions
Where can I buy Vishay 564R60GAQ33?
You can click on the BUY or RFQ button to purchase 564R60GAQ33 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 564R60GAQ33?
You can download the 564R60GAQ33 datasheet or visit the Vishay website for support.
Who is the manufacturer of 564R60GAQ33?
Vishay
