Vishay AC05AT0005100JAC00 High Power Wirewound Resistor
Vishay Draloric AC series high power wirewound resistors are designed for demanding high current applications in automotive, industrial, and energy meter systems. Featuring a cemented silicon coating, these resistors withstand harsh environments, thermal shocks, and mechanical stresses. Suitable for pulsed loads, they are RoHS compliant, non-flammable, and available in various lead configurations, including radial and SMD mounting. Bearing AEC-Q200 qualification, these robust resistors ensure reliable operation over extended periods, offering precise resistance values, excellent pulse load capability, and extensive testing for durability and environmental resilience.
Vishay AC05AT0005100JAC00 High Power Wirewound Resistor Specifications:
- Power Dissipation: 1W (ACO1, ACO1-AT), 3W (ACO3, ACO3-AT), 4W (ACO4, ACO4-AT), 5W (ACOS, ACO5-AT), 7W (ACO7, ACO7-AT), 10W (AC10, AC10-AT)
- Resistance Range: 0.102 Ω to 2.4 kΩ (ACO1 series), 0.27 Ω to 3.9 kΩ (ACO3 series), 0.102 Ω to 620 Ω (ACO4), 75 Ω to 27 kΩ (ACOS), 0.10 Ω to 8200 Ω (ACO7), 44 Ω to 8.0 kΩ (AC10)
- Tolerance: ±5%
- Temperature Range: -55°C to +250°C
- Pulse Load Capability: Suitable for pulse durations tested per IEC standards, peak pulse power varies with pulse duration
- Material: Ceramic body with cemented silicon lacquer coating, resistant to solvents
- Lead Configurations: Radial taped (RT), Z-form (WSZ), double kink (DK), single kink (EK)
- Compliance: RoHS, halogen-free, non-flammable, UL approved
- Package Options: Taped, bulk, blister, and fan-folded in a box, with specified dimensions

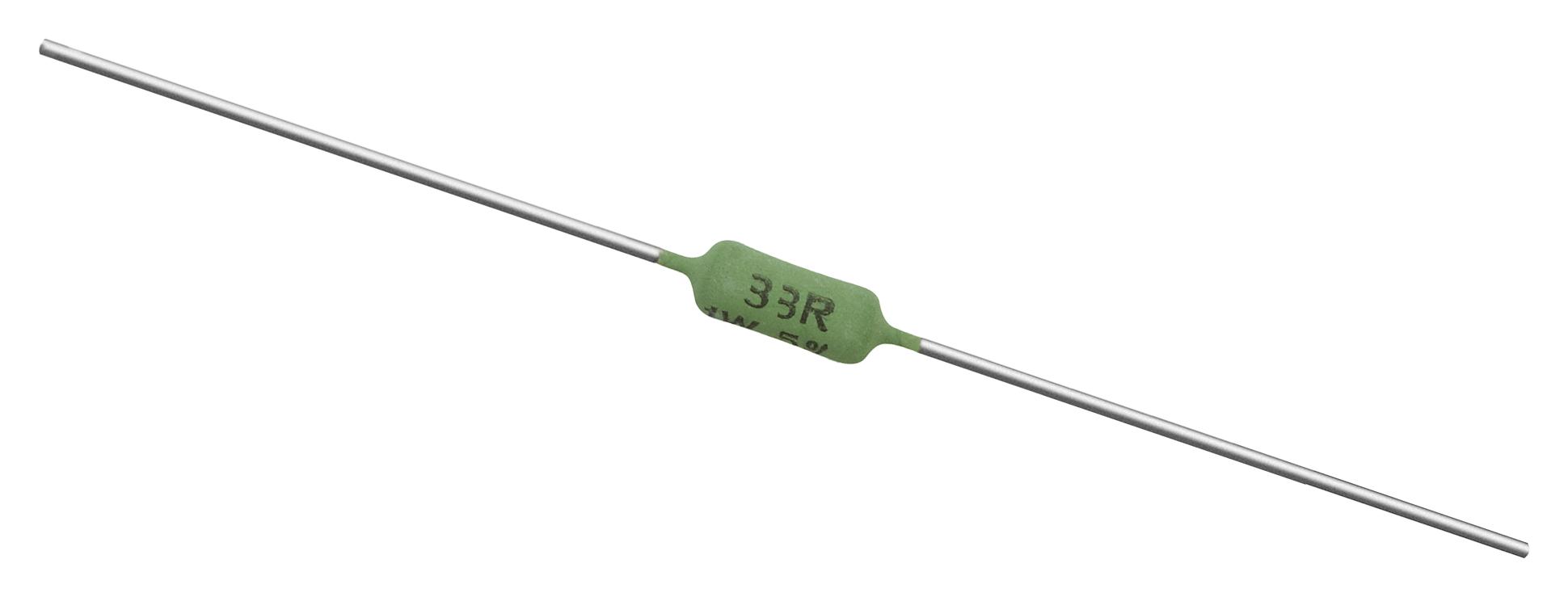

Buy the Vishay Series AC High Power Resistor: AC05AT0005100JAC00
Discover the reliable high power wirewound resistors from Vishay that are perfect for automotive, industrial, and energy meter applications. With AEC-Q200 qualification, these resistors feature excellent pulse load capabilities, durable cemented silicon coatings, and a broad resistance range. Available in various lead configurations including radial and SMD types, they are RoHS certified and designed to withstand harsh ambient conditions, thermal shocks, and mechanical stresses. Order online now for fast delivery and guaranteed performance in your high power applications.
Order your Vishay Series AC power resistor today and ensure your high current and pulse load applications perform reliably in demanding environments.
Frequently Asked Questions
Where can I buy Vishay AC05AT0005100JAC00?
You can click on the BUY or RFQ button to purchase AC05AT0005100JAC00 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AC05AT0005100JAC00?
You can download the AC05AT0005100JAC00 datasheet or visit the Vishay website for support.
Who is the manufacturer of AC05AT0005100JAC00?
Vishay
