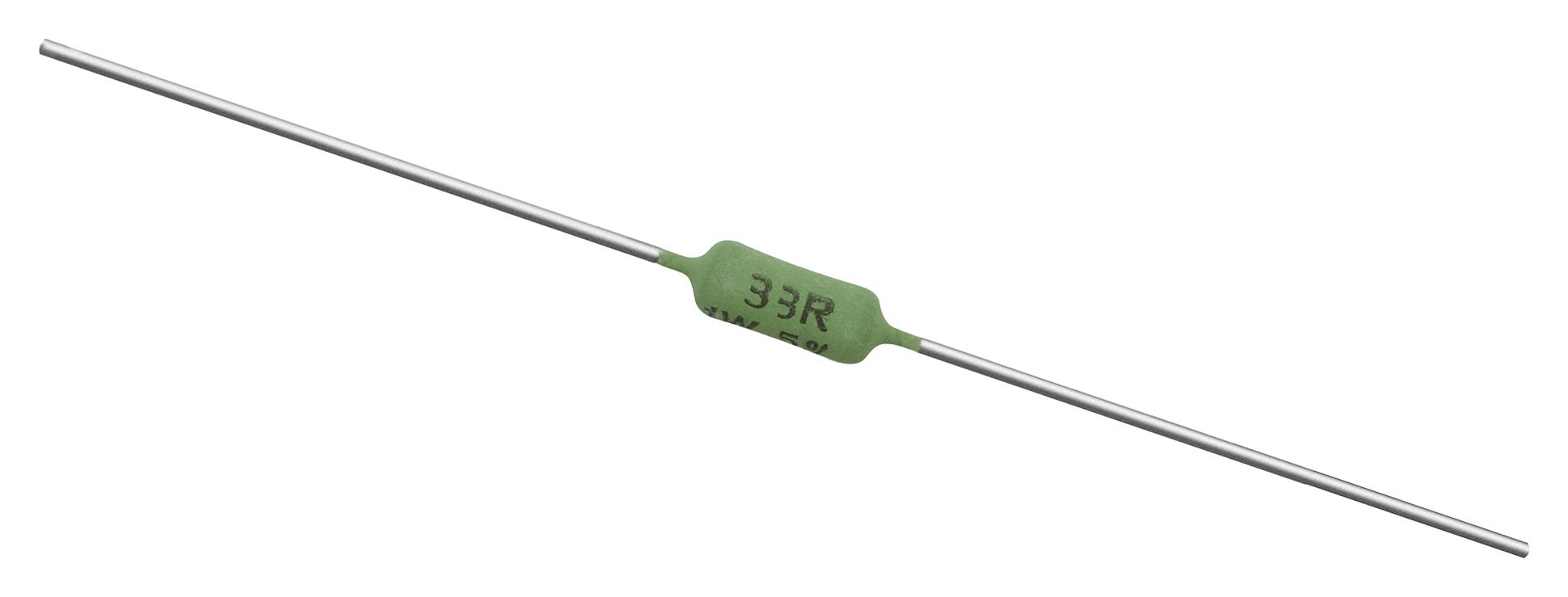

Vishay AC05AT0006809JAC00 Wirewound Resistor
The wirewound resistors are designed for high power, high current applications and feature a cemented lacquer coating for durability under challenging environmental conditions. Manufactured with a high-quality ceramic (Al2O3), these resistors offer excellent mechanical resistance, thermal shock, dielectric strength, and insulation properties at elevated temperatures. The series includes various lead forms such as radial taped, Z-form, double kink, and single kink, supporting different mounting options. Suitable for automotive, industrial, power supplies, and energy meter applications, they are compliant with RoHS, UL, and IEC standards, ensuring safety and reliability in demanding environments.
Vishay AC05AT0006809JAC00 Wirewound Resistor Specifications:
- Resistance Range: 0.10Ω to 75kΩ
- Rated Dissipation: 1W to 10W
- Maximum Power: 1W to 10W (derated at high temperatures)
- Temperature Range: -55°C to +250°C
- Resistance Tolerance: ±5%
- Material: Ceramic core (Al2O3), silicon cement lacquer coating
- Lead Form: Radial taped, Z-form, DK, EK, with various pitch sizes
- Dimensions vary by model, e.g., AC05-AT length 18mm, diameter 7.5mm
- Compliance: RoHS, UL, IEC 60115-1, IEC 62474, GADSL, REACH SVHC free
- Construction: Wound resistor with high thermal and mechanical stability
- Application: Automotive electronics, industrial power supplies, energy meters, pre-charged and demanding environments
Buy the Buy Vishay Wirewound Resistors Part Number AC05AT0006809JAC00 Online
Enhance your electronic projects with Vishay wirewound resistors, designed for high power and durability. Featuring various lead forms including radial taped and Z-form, these resistors suit automotive, industrial, and energy meter applications. Manufactured with Al2O3 ceramic and silicon cement lacquer coating, they withstand high temperatures up to 250°C, ensuring long-term reliability. Choose from a range of resistance values with a tolerance of ±5%. Easy to install with different lead configurations, these resistors are RoHS and UL compliant for safe, high-performance operation.
Buy Vishay AC05AT0006809JAC00 now and experience unmatched reliability and high power dissipation for demanding applications.
Frequently Asked Questions
Where can I buy Vishay AC05AT0006809JAC00?
You can click on the BUY or RFQ button to purchase AC05AT0006809JAC00 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AC05AT0006809JAC00?
You can download the AC05AT0006809JAC00 datasheet or visit the Vishay website for support.
Who is the manufacturer of AC05AT0006809JAC00?
Vishay
