Vishay ACCSUIPMWIPERKB434 Displacement Sensor
The product is an ultraflat industrial displacement sensor available in linear and rotational types with conductive plastic. It features a sealed design, high resolution, and RoHS compliance, suitable for industrial applications. Mechanical specifications include flexible insulating films and a protection class of IP66. Electrical features include total resistance up to 47kΩ, linearity within 22-25%, and temperature coefficients of -300 ppm/°C. The sensor's electrical travel ranges from 20 mm to 250 mm, with precise output and durability designed for long-term use in demanding environments.
Vishay ACCSUIPMWIPERKB434 Displacement Sensor Specifications:
- Total resistance: 47kΩ for UIPMA and 10kΩ for UIPMC
- Linearity: 22% (UIPMA), 25% (UIPMC)
- Temperature coefficient: -300 ppm/°C
- Electrical travel: 20 mm to 250 mm
- Theoretical electrical travel: 20 mm to 250 mm
- Useful travel: TET minus 2 mm
- Electrical continuity travel: TET plus 4 mm
- Protection class: IP66
- Dimensions: Thickness up to 0.51 mm, larger dimensions vary based on model
- Mechanical travel: up to 250 mm, adjustable with flexible insulating films
- Operating temperature: from -40°C to +50°C
- Drive force: >0.3 N, torque >1 Nm
- Output type: Connector-based, smoothness <0.1%
- Mounting: Double-sided adhesive, support flat, clean surfaces
- Wiper endurance: up to 3 million cycles (Type A) and 100,000 cycles (Type D)
- Electrical specifications include low dissipation, recommended current <1mA, load impedance 100Ω
- Compliance: RoHS, UL, and IP66 protection for outdoor/environmental durability

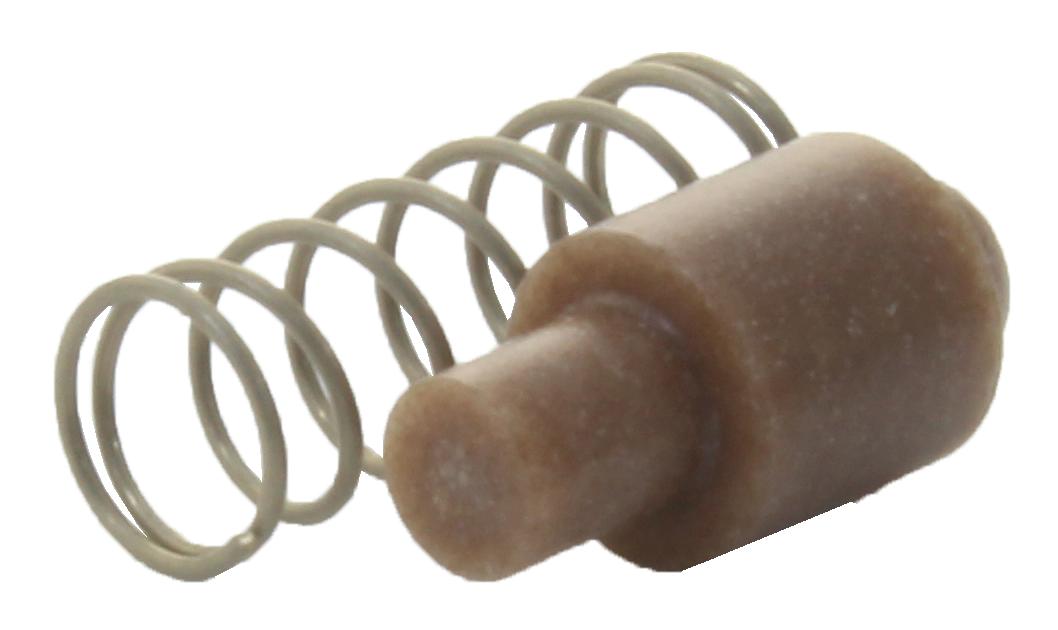

Buy the Buy Vishay UIPMA UIPMC Part Number ACCSUIPMWIPERKB434 Online
Purchase the Vishay displacement sensor online today and experience reliable, high-resolution linear or rotational measurements. Designed with durable, sealed insulating films, it offers IP66 protection and low temperature coefficients for precise performance in harsh environments. Its flexible design supports easy mounting with double-sided adhesive, making it suitable for demanding industrial applications. With a wide electrical travel range up to 250 mm and smooth output, this sensor ensures long-term durability and accuracy. Order now to upgrade your measurement systems with top-tier industrial sensors.
Order your Vishay SeriesUIPMA UIPMC ACCSUIPMWIPERKB434 today and ensure precise, durable displacement measurement for demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay ACCSUIPMWIPERKB434?
You can click on the BUY or RFQ button to purchase ACCSUIPMWIPERKB434 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part ACCSUIPMWIPERKB434?
You can download the ACCSUIPMWIPERKB434 datasheet or visit the Vishay website for support.
Who is the manufacturer of ACCSUIPMWIPERKB434?
Vishay
