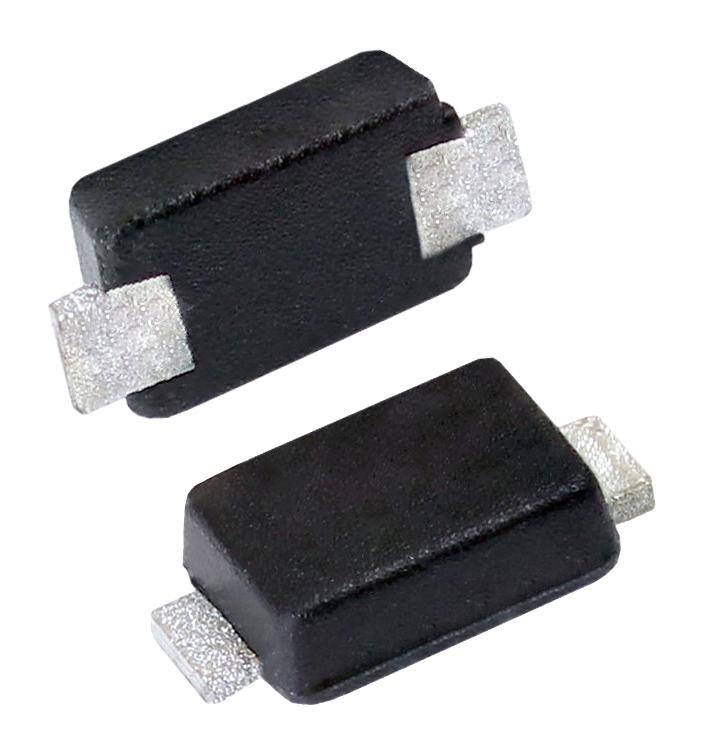

Vishay AR1FJM3H Avalanche Rectifier Diode
The Vishay surface-mount fast avalanche rectifiers are designed for high-speed switching and power conversion applications. These RoHS-compliant, glass passivated pellet chips feature low profile packages compatible with automated placement techniques. Suitable for power supplies, inverters, and telecommunication systems, they offer high peak reverse voltages ranging from 200V to 1000V, with fast recovery times and low forward voltage drop. Their robust construction and automotive qualification ensure reliable operation in demanding environments, meeting industry standards like AEC-Q101 for automotive applications.
Vishay AR1FJM3H Avalanche Rectifier Diode Specifications:
- Package: SMF (DO-219AB), compatible with SOD-123W outline
- Maximum Repetitive Peak Reverse Voltage: 200V to 1000V depending on model
- Maximum Forward Surge Current: 30A (AR1FJ, AR1FK, AR1FM), 26A (AR1FG, AR1FD)
- Peak Forward Surge Current: 10 ms single half sine-wave superimposed load
- Maximum Forward Voltage: 1.25V at 1.25A; 1.15V at 1.0A, typ.
- Maximum Reverse Current: 100 pA at 125°C; 1.0 pA at 25°C
- Typical Junction Capacitance: 4.0 V, 1 MHz, 12.6 pF (AR1FJ) and 9.3 pF (AR1FG)
- Operating Junction and Storage Temperature Range: -55 to +175°C
- Thermal Resistance: Junction to ambient approximately 20°C/W
- Polarity marked with a color band for cathode identification
- Material: Glass passivated pellet, halogen-free, RoHS compliant
- Wave and reflow solderable, meets flammability rating UL 94 V-0
- Qualified to industrial and automotive standards (AEC-Q101)
Buy the VISHAY AR1FJ – Reliable Avalanche Diodes for Industrial Applications
Experience the durability and high efficiency of the Vishay avalanche rectifier diodes, ideal for power supplies, inverters, and telecommunication equipment. These surface-mount diodes feature high peak reverse voltages, fast recovery times, low forward voltage, and RoHS compliance. Their robust design and automotive qualification meet strict industry standards, ensuring reliable operation in demanding environments. Perfect for automated assembly lines, these diodes provide dependable performance in various applications, making them the optimal choice for engineers seeking quality and consistency in electronic power management solutions.
Buy Vishay AR1FJ avalanche rectifier now and ensure high-performance, reliable power switching in your industrial and automotive systems.
