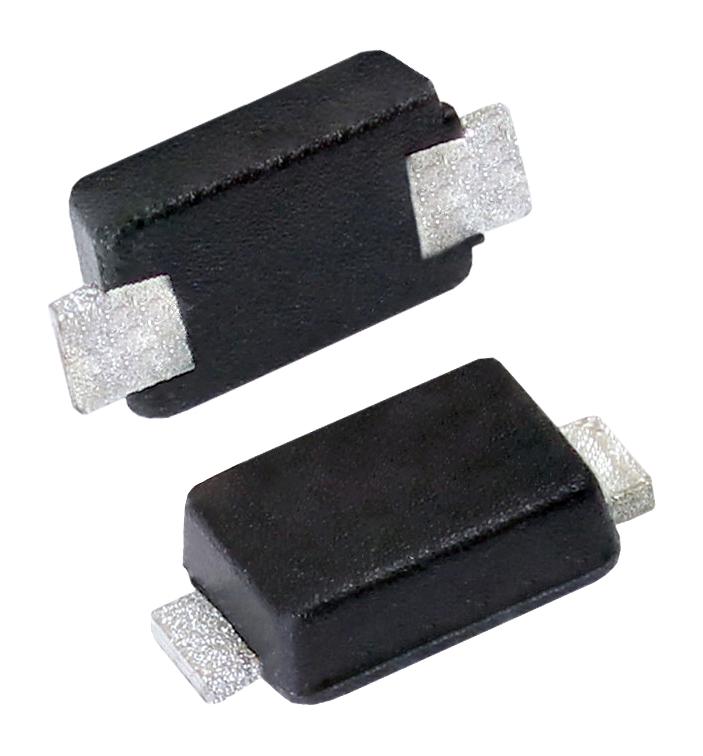

Vishay AS1FDHM3H Avalanche Surface Mount Rectifier
The Vishay AS1FDHM3/H is an avalanche surface-mount rectifier suitable for a wide range of applications including power supplies, inverters, converters, and freewheeling diodes. Its low profile package, glass passivated pellet chip junction, and AEC-Q101 qualification make it ideal for automotive and consumer electronics. The device offers low forward voltage drop, low reverse current, and is wave and reflow solderable, ensuring efficient and reliable performance.
Vishay AS1FDHM3H Avalanche Surface Mount Rectifier Specifications:
- IF(AV): 1.5 A
- VRRM: 200 V, 400 V, 600 V, 800 V, 1000 V
- IFSM: 30 A
- IR: 0.2 μA
- VFat IF= 1 A: 0.84 V
- EAS: 20 mJ
- TJmax: 175 °C
- Package: SMF (DO-219AB)
- Circuit configuration: Single
- Device marking code: ASD, ASG, ASJ, ASK, ASM
- Max. repetitive peak reverse voltage: 200 V, 400 V, 600 V, 800 V, 1000 V
- Max. DC forward current: 1.5 A
- Peak forward surge current: 30 A
- Non-repetitive avalanche energy: 20 mJ
- Operating junction and storage temperature range: -55 to +175 °C
- Instantaneous forward voltage: 0.95 V (TJ= 25 °C)
- Reverse current: 0.14 μA (TJ= 25 °C)
- Typical reverse recovery time: 1.3 μs
- Typical junction capacitance: 8.8 pF
- Typical thermal resistance RθJA: 130 °C/W
- Typical thermal resistance RθJM: 20 °C/W
