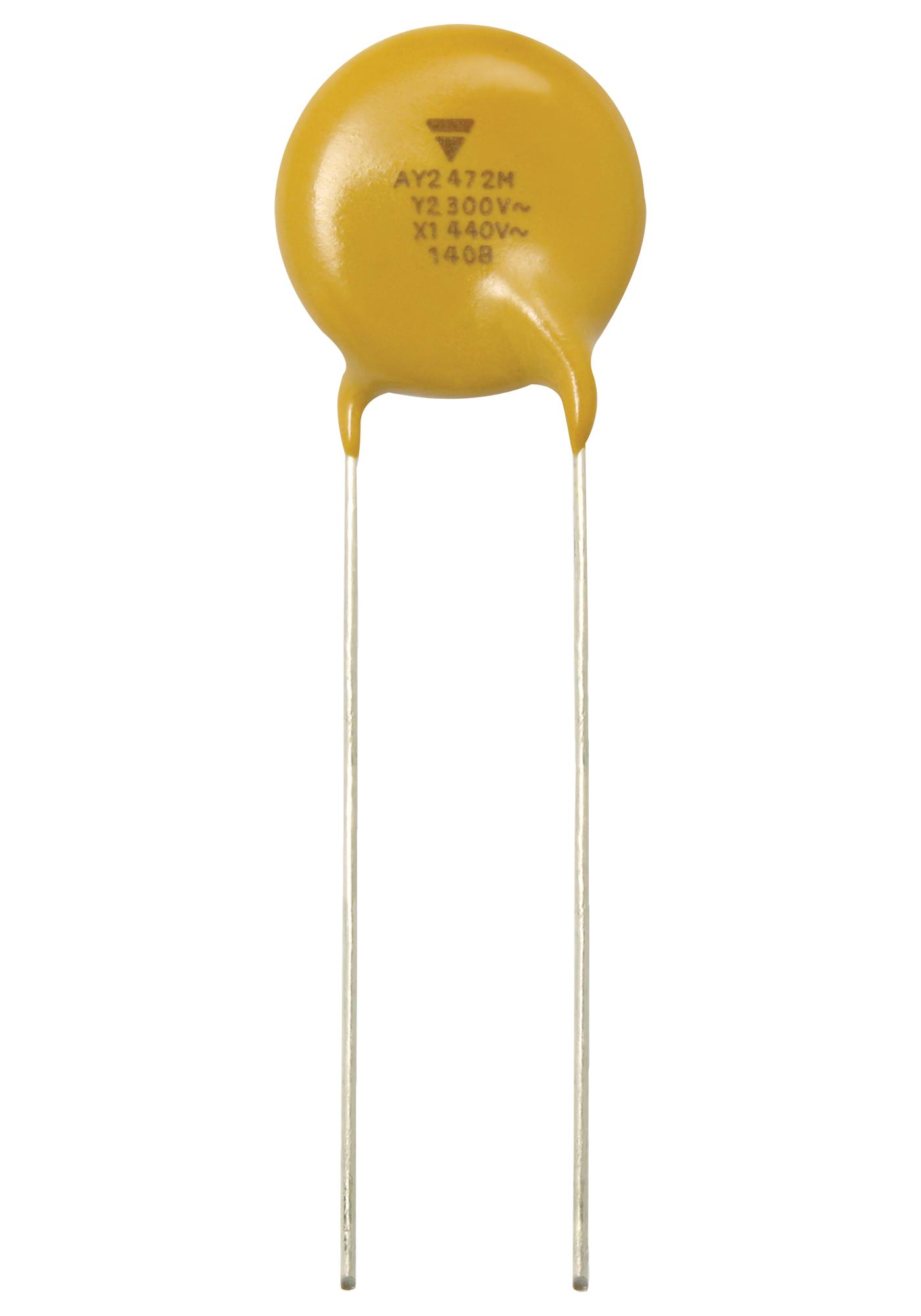

Vishay AY2222M35Y5US63L7 Ceramic Capacitor
The AY2 series AC line-rated ceramic capacitors feature a durable ceramic disc construction with silver-plated surfaces, tin-plated copper steel leads, and flame-retardant epoxy resin encapsulation. Available with straight or kinked leads and lead spacings of 5 mm, 7.5 mm, or 10 mm, they comply with safety standards IEC 60384-14 and UL94V-0. Suitable for AC line filtering, battery charger coupling, and DC/DC filtering in PHEV/EV, they provide high reliability, versatile configurations, and meet industrial and automotive safety requirements. Ideal for electronic and electrical applications in demanding environments, ensuring long-term performance and safety.
Vishay AY2222M35Y5US63L7 Ceramic Capacitor Specifications:
- Capacitance Range: 10 pF to 4700 pF
- Voltage Rating: 440 Vac (X1), 300 Vac (Y2)
- Dielectric Material: Ceramic Class 1 2, u2J, Y5S, Y5U, YSU
- Operating Temperature Range: -55°C to +125°C
- Lead Diameter: 0.6 mm
- Lead Spacing: 5 mm, 7.5 mm, or 10 mm
- Body Diameter: 11.0 mm (5 mm spacing), 14.0 mm (7.5 mm spacing), 16.0 mm (10 mm spacing)
- Encapsulation: Flame retardant epoxy resin UL94V-0
- Test Voltage: 2600 V at 50 Hz for 2s
- Insulation Resistance: ≥1 GΩ at 500 V
- Capacitance Tolerance: +20%, +10%
- Dissipation Factor: Max 0.3% (U2J), Max 2.5% (Y5S, Y5U)
- Certifications: IEC, UL, VDE, CSA, CQC
- Packaging: Tape and reel, ammopack, bulk
- Compliance: RoHS, Green material categorization
Buy the Vishay Series AY2 Ceramic Capacitor: AY2222M35Y5US63L7
Purchase the Vishay AY2 ceramic capacitor online for dependable performance in AC line filtering, coupling, and industrial electronic applications. Designed with a ceramic disc construction, silver-plated surfaces, and flame-retardant epoxy resin encapsulation, it ensures safety and durability under demanding conditions. Available with various lead configurations and lead spacings of 5 mm, 7.5 mm, or 10 mm, it offers flexible installation options. Certified by IEC, UL, VDE, CSA, and CQC, it guarantees high reliability, meets safety standards, and is ideal for automotive, PHEV, and EV electronics requiring proven safety and performance.
Get Vishay AY2222M35Y5US63L7 today—built for precision and long-lasting durability in electronic filtering applications.
Frequently Asked Questions
Where can I buy Vishay AY2222M35Y5US63L7?
You can click on the BUY or RFQ button to purchase AY2222M35Y5US63L7 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AY2222M35Y5US63L7?
You can download the AY2222M35Y5US63L7 datasheet or visit the Vishay website for support.
Who is the manufacturer of AY2222M35Y5US63L7?
Vishay
