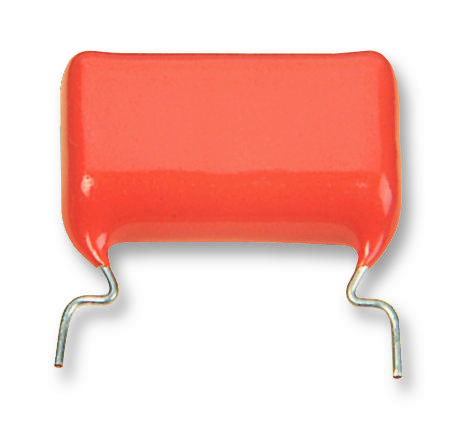

Vishay BFC237520223 Polypropylene Film Capacitor
Vishay BCcomponents KP/MKP radial lacquered polypropylene film capacitors are designed for high-current, pulse, and deflection circuit applications in televisions. Constructed with metallized aluminum electrodes and a polypropylene dielectric, these capacitors are RoHS compliant and feature a flame-retardant epoxy encapsulation. They are available in various voltage ratings up to 2000 V DC, with capacitance ranges from 0.1 nF to 270 nF. Suitable for automatic insertion on printed circuit boards, they withstand vibration, shock, and climatic tests, ensuring reliable operation in demanding industrial environments.
Vishay BFC237520223 Polypropylene Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized aluminum
- Rated DC Voltage: 630 V, 1000 V, 1600 V, 2000 V
- Rated AC Voltage: 300 V, 400 V, 500 V, 600 V
- Capacitance Range: 0.1 nF to 270 nF
- Tolerance: +5 %, +3.5 %
- Temperature Range: -55°C to +105°C
- Maximum Application Temperature: 105°C
- Insulation Resistance: >100,000 MΩ at 500 V for 1 min
- Pulse Slope (dU/dt): up to 27,000 V/μs depending on pitch and voltage
- RoHS compliant, flame retardant epoxy encapsulation UL-class V-0
- Mounting: Suitable for automatic insertion, PCB mounted, in tape or loose in box
- Climatic Class: 55/105/56 according to IEC 60068-1
- Heat Conductivity: Varies with pitch, roughly 4-37 mW/°C
Buy the Vishay KP/MKP – Reliable Polypropylene Film Capacitors for Industrial Applications
Secure your industrial circuit needs with Vishay KP/MKP polypropylene film capacitors. Designed for high-voltage pulse applications up to 2000 V DC, these reliable, RoHS-compliant capacitors provide excellent stability, vibration resistance, and safety. Perfect for automatic PCB insertion, they withstand climatic stresses and shocks, ensuring long-term performance. Whether for deflection circuits in televisions or high-current pulses, buy online today and benefit from Vishay's quality craftsmanship, fast shipping, and technical support for your demanding industrial projects.
Buy Vishay KP/MKP polypropylene film capacitors now and ensure dependable performance in high-current pulse and deflection circuits within industrial environments.
Frequently Asked Questions
Where can I buy Vishay BFC237520223?
You can click on the BUY or RFQ button to purchase BFC237520223 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part BFC237520223?
You can download the BFC237520223 datasheet or visit the Vishay website for support.
Who is the manufacturer of BFC237520223?
Vishay
