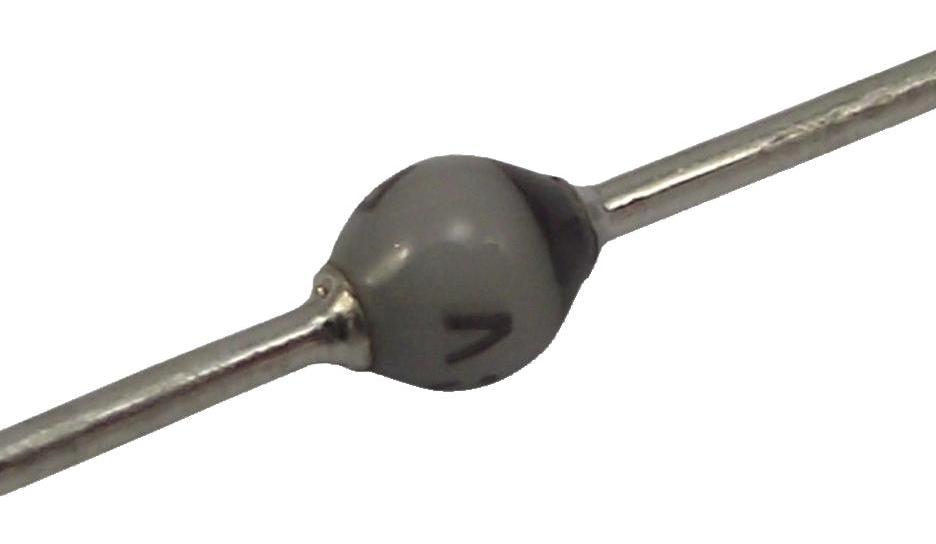

Vishay BYW52TR Avalanche Diode
The Vishay BYW52TR is a reliable standard avalanche diode with glass-passivated junction, hermetically sealed package, controlled avalanche characteristics, low reverse current, and high surge current capability. Designed for rectification and general-purpose applications, it features axial plated leads that are solderable per MIL-STD-750, method 2026. This diode can be mounted in any position and supports high reverse voltage ratings up to 200 V, making it ideal for various industrial and electronic applications requiring robust transient suppression and circuit protection.
Vishay BYW52TR Avalanche Diode Specifications:
- Case: SOD-57
- Polarity: color band denotes cathode end
- Mounting: any position
- Terminals: plated axial leads, solderable per MIL-STD-750, method 2026
- Weight: approx. 369 mg
- Peak reverse voltage: up to 1000 V
- Repetitive peak forward current: 12 A
- Average forward current: 2 A
- Surge peak current: 50 A (10 ms, half sine wave)
- Junction and storage temperature range: -55°C to +175°C
- Maximum thermal resistance (lead: 45 KW, PCB with 25 mm spacing: 100 KW)
- Electrical characteristics: breakdown voltage up to 1600 V, forward voltage 0.9 V at 1 A, reverse current at 25°C: 10 pA, diode capacitance: 18 pF at 4 V.
- Package dimensions: 26 mm length, 4 mm max diameter, lead length 10 mm
- RoHS compliant, halogen-free, AEC-Q101 qualified
Buy the Vishay BYW52TR – Reliable Avalanche Diode for Industrial Applications
Enhance your electronic circuits with the Vishay BYW52TR avalanche diode, featuring high surge current, glass passivation, hermetic sealing, and reliable avalanche characteristics. Perfect for rectification, transient suppression, and industrial applications, this diode offers excellent performance and durability. Its axial plated leads allow easy soldering and mounting in any position, providing versatile integration into your designs. With a voltage rating up to 1000 V and low reverse current, it ensures circuit stability and protection under demanding conditions. Order online now for quick delivery and dependable performance.
Order your Vishay BYW52TR avalanche diode today and ensure robust transient suppression and circuit protection in your industrial projects.
Frequently Asked Questions
Where can I buy Vishay BYW52TR?
You can click on the BUY or RFQ button to purchase BYW52TR from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part BYW52TR?
You can download the BYW52TR datasheet or visit the Vishay website for support.
Who is the manufacturer of BYW52TR?
Vishay
