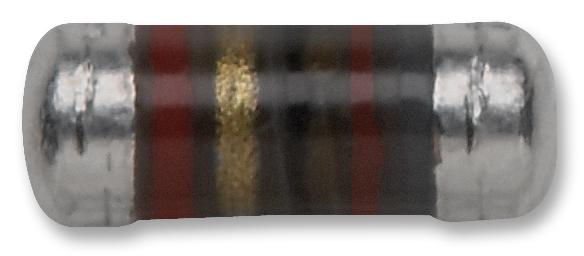

Vishay CMA02040X1509GB300 High Pulse Load MELF Resistor
The CMA 0204 style resistors are high pulse load MELF components with advanced pulse capabilities, suitable for protecting circuitry against surge pulses, electromagnetic interference, and electrostatic discharge. Constructed with a dense carbon film on a high-grade ceramic body (85% Al2O3), they feature nickel-plated steel terminations and a laser-cut resistive layer. Designed for automatic SMD assembly, they excel in automotive, telecommunication, industrial, and medical applications, providing reliable performance, excellent solderability, and compliance with RoHS and environmental standards. Their rugged design ensures durability in demanding electronic circuits under various stress conditions.
Vishay CMA02040X1509GB300 High Pulse Load MELF Resistor Specifications:
- Resistance range: 10Ω to 100kΩ
- Resistance tolerance: ±2%
- Rated dissipation: 0.25 W (standard mode), 0.4 W (power mode)
- Operation voltage: up to 200 V AC/DC
- Film temperature: 125°C, maximum 155°C
- Ambient climatic category: 55/125/56
- Resistance change after 1000h: <1% (10Ω to 100kΩ)
- Resistance change after 8000h: <2% (10Ω to 100kΩ)
- Dissipation depends on heat flow; heat sinking may be required
- Dimensions: Length 3.6mm, Diameter 1.4mm, Lead spacing 1.8mm
- RoHS compliant, suitable for automatic soldering, with laser-cut resistive layer
- Color code markings: IEC 60062, four-band mark, tolerance band wider for tolerance identification
- Suitable for wave, reflow, vapor-phase soldering
- Climatic stability and electrical robustness verified by extensive testing according to IEC standards
- Certifications: RoHS compliant, environmentally certified, Halogen-Free options
- Application: Automotive, telecommunication, industrial equipment, medical devices
Buy the Buy Vishay High Pulse Load MELF Resistors Part Number CMA02040X1509GB300 Online
Purchase the Vishay High Pulse Load MELF Resistor CMA02040X1509GB300 now for superior surge protection and circuit durability. Engineered with advanced carbon film technology on a ceramic body, it offers excellent pulse load capability up to 4 kV single pulse and 70 W continuous pulse load. Its robust design ensures stable resistance over extended periods under demanding conditions, making it ideal for automotive, telecommunication, industrial, and medical applications. Enjoy fast, reliable online ordering with comprehensive specification details, RoHS compliance, and long-term performance assurance. Elevate your electronic designs today!
Order your Vishay Series CMA02040X1509GB300 high pulse load resistors today and ensure reliable performance in surge-prone and high-stress circuits.
Frequently Asked Questions
Where can I buy Vishay CMA02040X1509GB300?
You can click on the BUY or RFQ button to purchase CMA02040X1509GB300 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CMA02040X1509GB300?
You can download the CMA02040X1509GB300 datasheet or visit the Vishay website for support.
Who is the manufacturer of CMA02040X1509GB300?
Vishay
