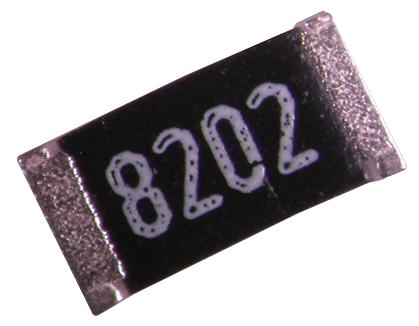

Vishay CRCW120682K0FKEAHP High Power Thick Film Resistor
The product is a high power thick film chip resistor series designed for power measurement applications, featuring excellent pulse load capability, enhanced power ratings, and RoHS compliance. Suitable for automotive and industrial environments, these resistors offer high stability, reliability, and pulse load performance with various package sizes like 0402, 0603, up to 2512. They are manufactured with a cermet film layer, glass-over on a ceramic substrate, and equipped with pure tin plating for lead-free soldering. These resistors undergo extensive testing, meet industry standards, and are ideal for demanding applications requiring high power dissipation and thermal stability.
Vishay CRCW120682K0FKEAHP High Power Thick Film Resistor Specifications:
- Size: CRCW1206-HP, Length: 3.2 mm, Width: 1.6 mm, Height: 0.5 mm
- Resistance Range: 1Ω to 1MΩ, Resistance Tolerance: ±1%, ±2.5%, ±5%
- Temperature Coefficient: ±200 ppm/K, Max Operating Temperature: +155°C
- Rated Dissipation: 0.75 W at 70°C, 1.5 W at 70°C with proper heat sinking
- Pulse Load Capability: For pulse durations up to 1s, with maximum pulse voltage of 200V
- Material: cermet resistive layer on alumina ceramic substrate, covered with glass
- Termination: Pure tin plating on nickel for lead-free soldering
- Compliance: RoHS, AEC-Q200 qualified, UL listed
- Test Standards: EN 60115-1, IEC 60068-2, EN 140401-802, IEC 61340-3-1
- Soldering: Suitable for wave, reflow, vapor phase soldering methods
- Dimensions: Length 3.2 mm, Width 1.6 mm, Height 0.5 mm, Mass approximately 18 mg
Buy the Vishay Series HP High Power Thick Film Resistors: CRCW1206-HP
Purchase Vishay Series HP high power thick film resistor online today to benefit from superior pulse load performance, high power ratings, RoHS compliance, and extensive qualification. These resistors are ideal for automotive and industrial power measurement applications, offering excellent thermal stability, durability, and reliability. With various package sizes up to 2512, they provide flexibility for your design needs. Enjoy fast delivery, quality assurance, and the confidence that comes with Vishay's trusted manufacturing standards for your high-demand electronic projects.
Order your Vishay Series HP high power thick film resistor today and ensure reliable, high-performance power measurement for your industrial and automotive projects.
Frequently Asked Questions
Where can I buy Vishay CRCW120682K0FKEAHP?
You can click on the BUY or RFQ button to purchase CRCW120682K0FKEAHP from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CRCW120682K0FKEAHP?
You can download the CRCW120682K0FKEAHP datasheet or visit the Vishay website for support.
Who is the manufacturer of CRCW120682K0FKEAHP?
Vishay
