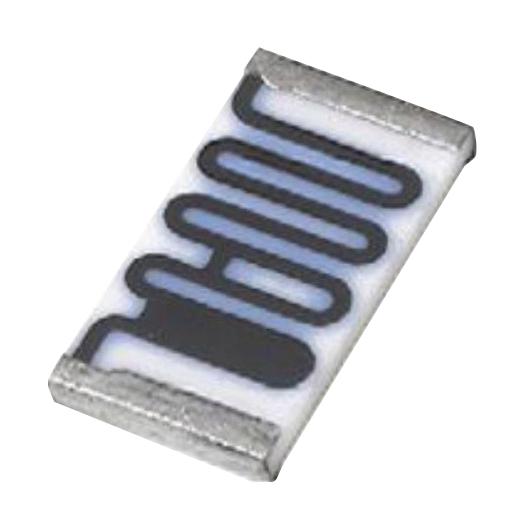

Vishay CRHA2512AF100MFKEF High Voltage Chip Resistor
High-voltage thick film chip resistor designed for demanding industrial and electronic applications, with voltage ratings up to 3000 V. Features robust Ruthenium oxide resistive element, glass encapsulation, and nickel barrier termination for high stability and reliability. Suitable for automatic placement, tape and reel packaging, and capable of withstanding extreme operating temperatures from -55°C to +155°C. Provides excellent stability (<0.5%) over life, short-time overload, and environmental conditions, making it ideal for high-voltage, high-power electronic circuits requiring precision and durability.
Vishay CRHA2512AF100MFKEF High Voltage Chip Resistor Specifications:
- Size: 2512 (0.250 x 0.126 inches, 6.35 x 3.20 mm)
- Voltage Rating: 3000 V
- Resistance Range: 10M to 500M ohms
- Temperature Range: -55°C to +155°C
- Material: Ruthenium oxide resistive element, glass encapsulation
- Termination: Nickel barrier, solder-coated nickel
- Power Rating: 0.60 W at certain voltages
- Tolerance: ±0.5%, ±1%, ±2.5%, ±5%, ±10%, ±20%
- Coefficient of Resistance: 25 ppm/°C for 2M–100M, 15 ppm/°C for 6M–100M, 10 ppm/°C for 10M–500M
- Dimensions: Length 0.250 in (6.35 mm), Width 0.126 in (3.20 mm), Thickness 0.025 in (0.635 mm)
Buy the Vishay Series CRHA High Voltage Chip Resistor: CRHA2512AF100MFKEF
Discover the dependable performance of the high voltage chip resistor designed for industrial applications. Withstanding up to 3000 V and operating in temperatures from -55°C to +155°C, it offers exceptional stability (<0.5%) and environmental resistance. Ideal for high-power circuits, its rugged Ruthenium oxide element and nickel barrier termination ensure long-term reliability. Available in tape and reel packaging, this resistor supports automated assembly and ensures precise resistance tuning, making it an excellent choice for demanding electronic and industrial projects requiring durability and accuracy.
Order your Vishay Series CRHA2512AF100MFKEF high voltage chip resistor today and ensure your circuits are protected with reliable, high-stability components.
Frequently Asked Questions
Where can I buy Vishay CRHA2512AF100MFKEF?
You can click on the BUY or RFQ button to purchase CRHA2512AF100MFKEF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CRHA2512AF100MFKEF?
You can download the CRHA2512AF100MFKEF datasheet or visit the Vishay website for support.
Who is the manufacturer of CRHA2512AF100MFKEF?
Vishay
