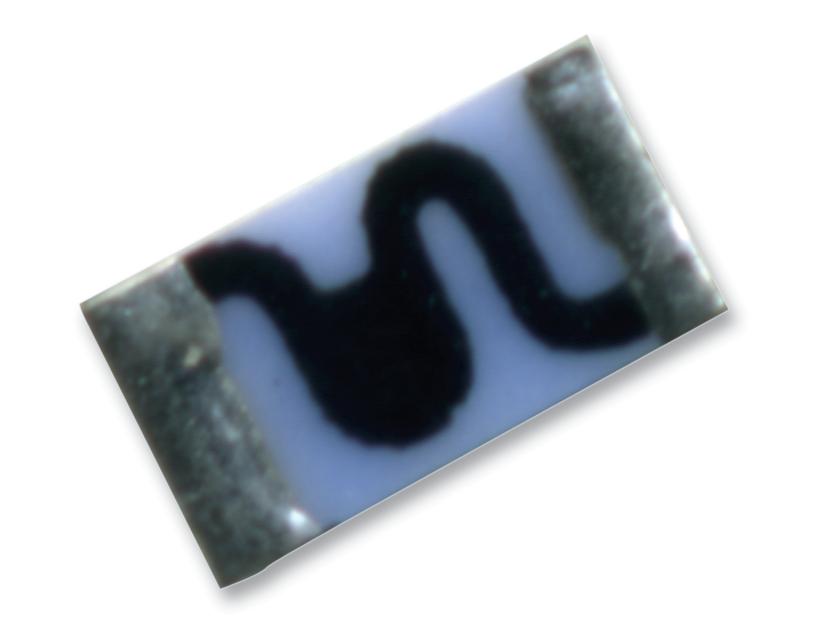

Vishay CRHV2010AF10M0FKET High-Voltage Resistor
The CRHV2010 is a high-voltage thick film chip resistor capable of withstanding up to 2000 V and providing outstanding stability with less than 0.5% change over temperature. It features RoHS compliance, customizable sizes, and multiple termination styles including wraparound and flip chip configurations. Constructed with ruthenium oxide on a ceramic substrate, it offers excellent reliability for high voltage applications in various industrial electronics, including solderable, bondable, and wire-bondable setups. Suitable for precision resistor networks in demanding environments, it ensures durability and consistent performance across a wide temperature range of -55°C to +155°C.
Vishay CRHV2010AF10M0FKET High-Voltage Resistor Specifications:
- Maximum Voltage: 2000 V
- Resistance Range: 100 Ω to 100 MΩ
- Temperature Coefficient: 100 ppm/°C
- Operating Temp Range: -55°C to +155°C
- Material: Ruthenium oxide, alumina substrate
- Termination Styles: 3-sided wraparound, 5-sided wraparound, flip chip
- Termination Materials: Solder-coated nickel barrier, gold, palladium silver, platinum gold
- Dimensions: Length 0.200 inches, Width 0.100 inches, Thickness 0.025 inches
- Environmental: RoHS compliant, halogen-free versions available
- Solder Finish: Sn95/Ag5 standard, with options for Sn62/Pb36/Ag2 or others
- Certified for high stability and reliability in demanding industrial environments.
Buy the Vishay CRHV2010 High-Voltage Resistor – Reliable Thick Film for Industrial Applications
Order the Vishay CRHV2010 high-voltage resistor online today and enhance your industrial electronic designs with exceptional stability and robustness. Engineered for demanding high-voltage applications, this resistor offers accuracy, durability, and versatile termination options suitable for various solderable, bondable, and wire-bondable configurations. Its RoHS compliance ensures environmentally responsible manufacturing. With a wide operating temperature range from -55°C to +155°C, it maintains consistent performance under extreme conditions. Purchase now for fast delivery and reliable performance in high-voltage power supplies, industrial automation, and control systems.
Buy Vishay CRHV2010 high-voltage thick film resistor now and experience unmatched reliability and performance in your high-voltage industrial circuits.
Frequently Asked Questions
Where can I buy Vishay CRHV2010AF10M0FKET?
You can click on the BUY or RFQ button to purchase CRHV2010AF10M0FKET from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CRHV2010AF10M0FKET?
You can download the CRHV2010AF10M0FKET datasheet or visit the Vishay website for support.
Who is the manufacturer of CRHV2010AF10M0FKET?
Vishay
