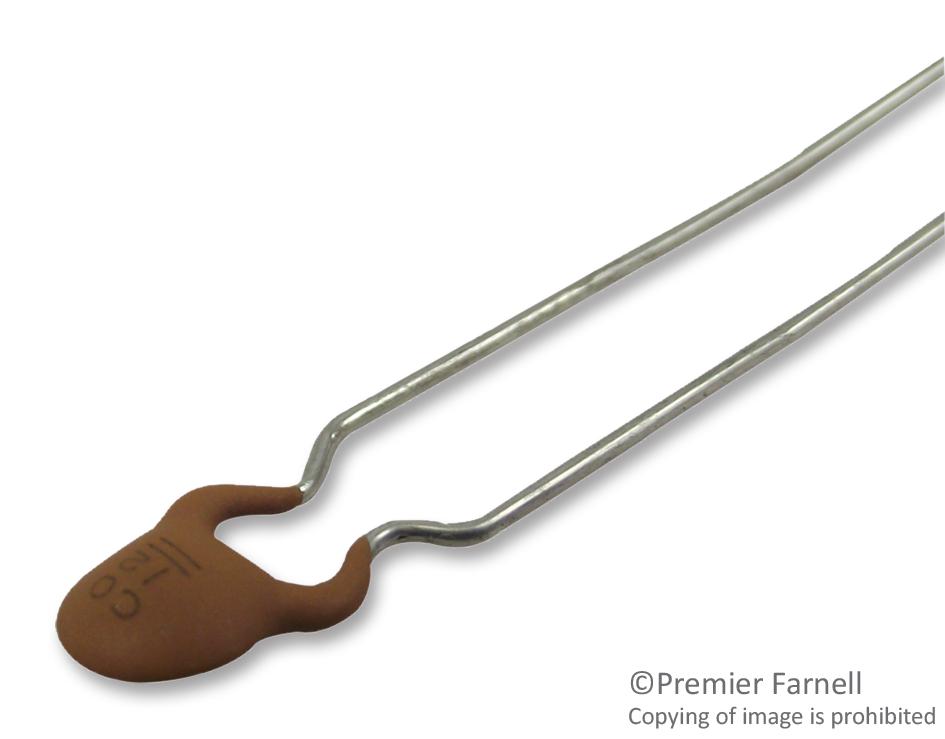

Vishay D331K20Y5PL6TJ5R Ceramic Capacitor
The product is a high-quality ceramic capacitor suitable for general purpose applications including temperature compensation, coupling, decoupling, and bypassing. It features various dielectric types such as Class 1, Class 2, Class 3, Y5V, Z5U, Z5V, X7R, and X5F, with voltage ratings ranging up to 500 V. Compact in size, it offers high reliability and RoHS compliance. Different sizes, lead configurations, and tolerance options are available, making it versatile for diverse electronic and industrial uses.
Vishay D331K20Y5PL6TJ5R Ceramic Capacitor Specifications:
- Capacitance Range: 6.8 pF to 47,000 pF depending on dielectric type
- Voltage Ratings: 50 V, 100 V, 500 V
- Dielectric Types: Class 1, Class 2, Class 3, Y5V, Z5U, Z5V, X7R, X5F
- Operating Temperature Range: from -55°C to +125°C depending on dielectric
- Dissipation Factor: Class 1 max 0.1% at 1 MHz; Class 2 & 3 approx 2.5-5% at 1 kHz
- Insulation Resistance: ≥10 GΩ at rated voltage
- Lead Diameter: 0.6 mm
- Lead Spacing: 2.5 mm, 5.0 mm, 6.4 mm, 7.5 mm depending on configuration
- Physical Sizes: varied; typical diameter 5 mm to 14 mm
- RoHS Compliant
Buy the VISHAY D331K20Y5PL6TJ5R – Reliable Ceramic Capacitor for Industrial Applications
Enhance your electronic projects with the high reliability ceramic capacitor from Vishay, suitable for temperature compensation, bypassing, and decoupling. Featuring capacitance options from 6.8 pF to 47,000 pF and voltage ratings up to 500 V, it guarantees high performance in demanding environments. Compact and RoHS compliant, this capacitor offers excellent insulation resistance and minimal dissipation factor. Order online today to ensure your industrial applications benefit from Vishay's proven quality and precision components for maximum durability and efficiency.
Order your VISHAY Series D331K20Y5PL6TJ5R high-reliability ceramic capacitor today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Vishay D331K20Y5PL6TJ5R?
You can click on the BUY or RFQ button to purchase D331K20Y5PL6TJ5R from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part D331K20Y5PL6TJ5R?
You can download the D331K20Y5PL6TJ5R datasheet or visit the Vishay website for support.
Who is the manufacturer of D331K20Y5PL6TJ5R?
Vishay
