Vishay DG418DJE3 Analog Switch
The DG418DJ-E3 is a high-performance single-pole single-throw monolithic CMOS analog switch designed for precise analog signal switching. It features low power consumption, minimal leakage, high switching speed, and low on-resistance within a compact package, ideal for space-constrained applications. Built on Vishay's high voltage silicon gate process with latch-up prevention, it conducts equally in both directions and blocks up to supply voltage when off. Compatible with TTL and CMOS logic, it is suitable for industrial, measurement, defense, and aerospace applications requiring reliability and efficiency. Its fast response and break-before-make action enhance circuit performance and signal integrity, making it a versatile choice for numerous electronic systems.
Vishay DG418DJE3 Analog Switch Specifications:
- Control Logic Compatibility: TTL and CMOS
- On-Resistance: 20 Ω typical, 35 Ω maximum at room temperature
- Leakage Current: ±0.25 μA typical
- Break-Before-Make Time: <20 ns
- Switching Time: 60-145 ns depending on conditions
- Supply Voltage Range: -15 V to +15 V, maximum 44 V
- Input Control Voltage: Low <0.8 V, High >2.4 V
- Power Dissipation: 600 mW at 8-Pin CerDIP, 400 mW at 8-Pin SOIC
- Temperature Range: -40°C to 85°C
- Package Types: 8-Pin Plastic MiniDIP, 8-Pin Narrow SOIC

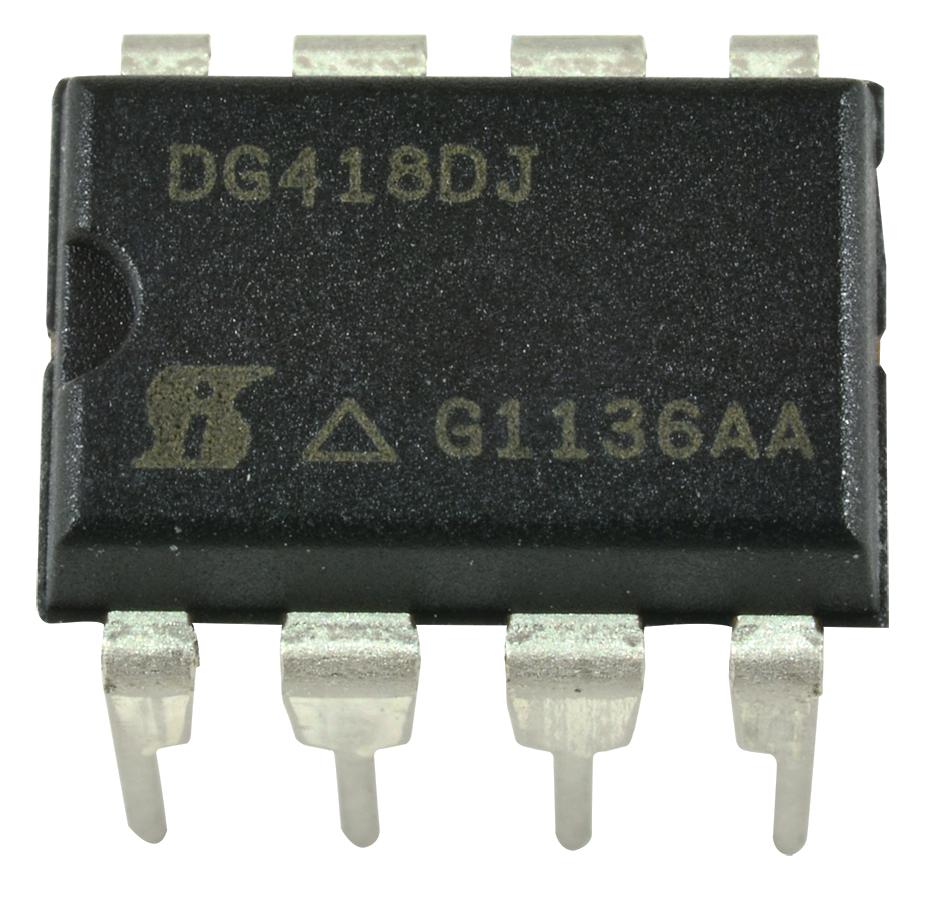

Buy the Buy Vishay DG418DJE3 Part Number DG418DJE3 Online
Order the Vishay DG418DJE3 now for high-speed, low-leakage analog signal switching in space-efficient designs. Its low on-resistance, rapid switch times, and TTL/CMOS compatibility make it ideal for industrial, military, and measurement applications. With excellent signal integrity and break-before-make action, this CMOS analog switch ensures reliable performance in complex circuits. Perfect for space-constrained systems, it provides efficient electronic switching with fast response times, boosting circuit reliability and precision for diverse electronic projects. Purchase online today for fast delivery and optimal circuit performance.
Buy Vishay DG418DJE3 now and experience unmatched reliability and high-speed analog switching performance.
Frequently Asked Questions
Where can I buy Vishay DG418DJE3?
You can click on the BUY or RFQ button to purchase DG418DJE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part DG418DJE3?
You can download the DG418DJE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of DG418DJE3?
Vishay
