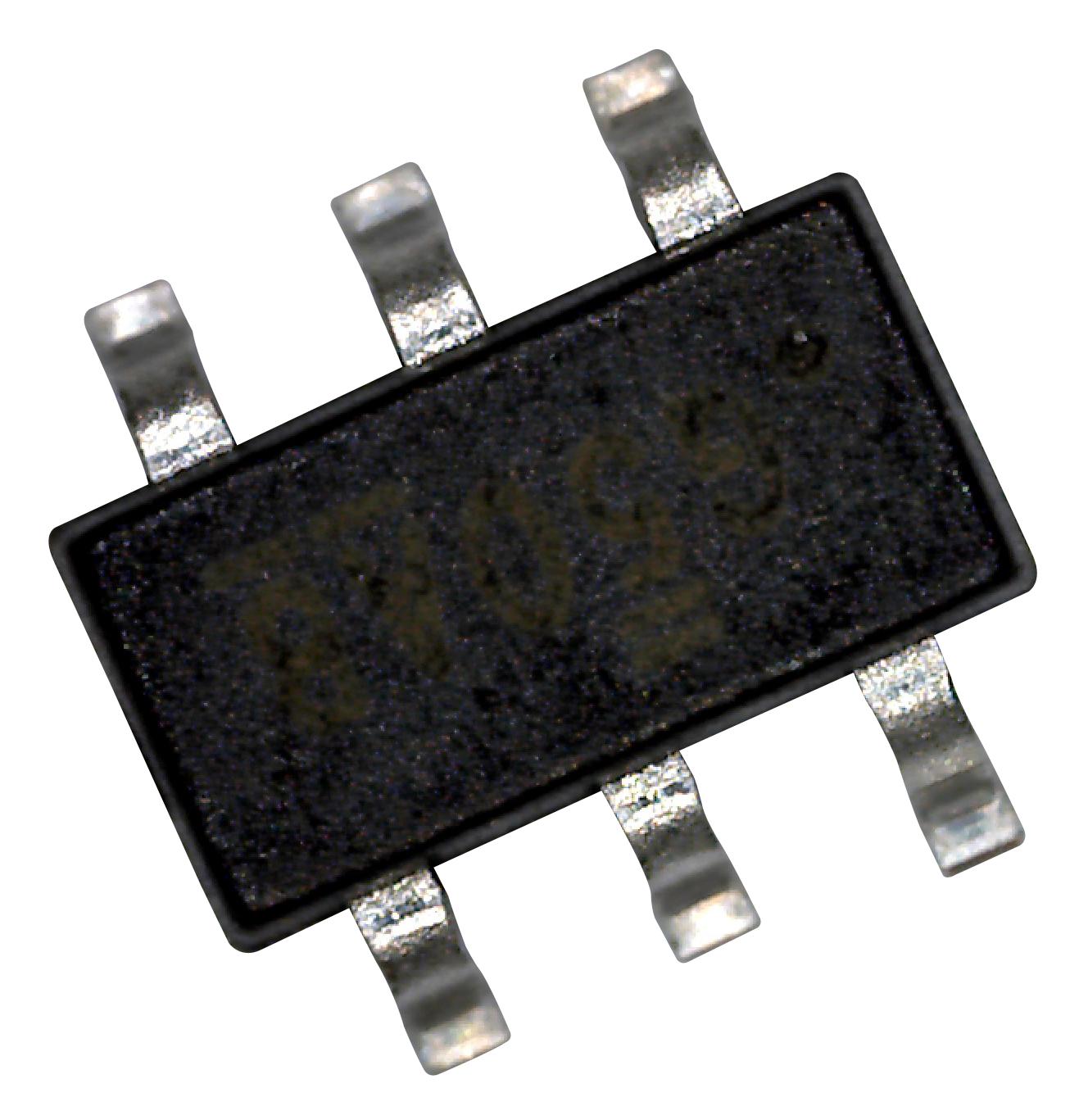

Vishay DG447DVT1E3 High Voltage Analog Switch
This is a low power, high voltage SPST analog switch designed for precise signal control. It supports an analog signal range of ±15V with a maximum on-resistance of 25 ohms. The switch features fast switching with a turn-on time of 100 nanoseconds and is compatible with TTL and CMOS logic inputs. It handles rail-to-rail signals and operates with either single or dual power supplies. The device does not require a separate logic supply voltage and is optimized for high-speed, low-error switching of high-accuracy analog signals.
Vishay DG447DVT1E3 High Voltage Analog Switch Specifications:
- Analog Signal Range: ±15V
- On-Resistance: 25Ω max
- Turn-On Time: 100 ns
- Supply Voltage: 12V (V+), 0V (GND)
- Operating Temperature: -40°C to 85°C
- Power Dissipation (Package): 570 mW
- Channel Off Leakage Current: -1 to 7 nA
- Input Capacitance: 3 pF
- Drive Compatibility: TTL CMOS
- Reflow Temperature Profile: 155°C for 120s max
- Soldering Profile: Ramp-up +6°C/sec, Ramp-down +6°C/sec
Buy the Vishay Series High Voltage Analog Switch: DG447DVT1E3
Order the Vishay DG447DVT1E3 high voltage analog switch online today. Ideal for high-speed, low-error analog signal switching in test equipment, instrumentation, communication systems, and industrial automation. Its compact TSOP6 package, rapid 100ns switching, and rail-to-rail support make it the perfect choice for reliable and precise switching applications. Enjoy fast delivery, competitive pricing, and certified quality—purchase online now to enhance your electronic projects with this high-performance analog switch designed for demanding environments.
Get Vishay DG447DVT1E3 today—built for precision and long-lasting durability in analog signal routing.
Frequently Asked Questions
Where can I buy Vishay DG447DVT1E3?
You can click on the BUY or RFQ button to purchase DG447DVT1E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part DG447DVT1E3?
You can download the DG447DVT1E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of DG447DVT1E3?
Vishay
