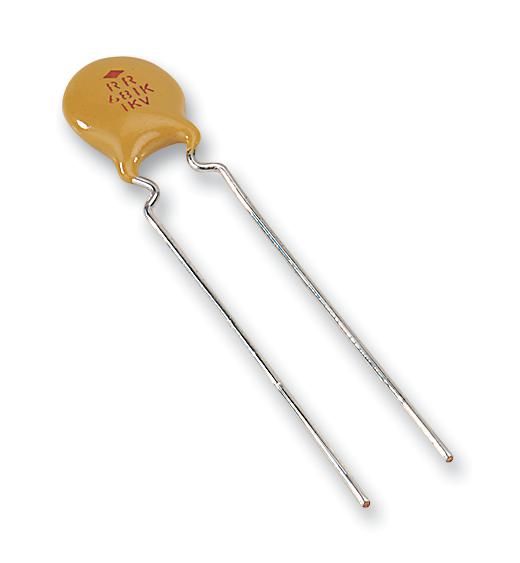

Vishay F271K25S3NN63J5R Ceramic Disc Capacitor
The product is a high-reliability ceramic disc capacitor designed for electronic circuits requiring low losses and high capacitance per volume, such as SMPS, HF ballast, and snubber high voltage circuits. It features Class 1 and Class 2 dielectric materials, with voltage ratings up to 3 kV, and offers excellent stability and aging characteristics. The capacitors are silver-plated discs with kinked leads, epoxy encapsulation, and a wide operating temperature range from -30°C to +125°C, complying with IEC and EIA standards.
Vishay F271K25S3NN63J5R Ceramic Disc Capacitor Specifications:
- Dielectric: SN Y5R / S3N / Y5R (depending on model)
- Capacitance Range: 100 pF to 4700 pF
- Rated Voltage: 500 V; 1 kV; 2 kV; 3 kV
- Voltage with dielectric strength: 200% of rated voltage
- Temperature Range: -30°C to +125°C
- Capacitance Tolerance: +10%; +20%
- Dissipation Factor: max. 0.2%
- Insulation Resistance: at least 210,000 MΩ at 500 V
- Lead Diameter: 0.6 mm
- Lead Spacing: 5 mm, 7.5 mm, 10 mm
- Encapsulation: epoxy resin, UL 94 V-0
- Conformity: RoHS compliant
- Mounting: Radial leads, kinked leads for easy placement
- Application: High voltage snubber, filter circuits, EMI suppression
Buy the VISHAY Series F Capacitors: Ceramic Disc Capacitors 100 pF-4700 pF: F271K25S3NN63J5R
Order the VISHAY F271K25S3NN63J5R ceramic disc capacitor today online and ensure high reliability and low-loss performance in your high-voltage circuits. This high-quality component offers excellent stability, wide operating temperature from -30°C to +125°C, and voltage ratings up to 3 kV. Perfect for SMPS, snubber, and EMI suppression circuits, it features kinked leads for easy mounting, epoxy encapsulation for durability, and complies with RoHS standards. Buy now to enhance your electronic designs with proven Vishay reliability.
Buy VISHAY F271K25S3NN63J5R ceramic disc capacitor now and experience unmatched reliability and performance in high-voltage electronic applications.
Frequently Asked Questions
Where can I buy Vishay F271K25S3NN63J5R?
You can click on the BUY or RFQ button to purchase F271K25S3NN63J5R from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part F271K25S3NN63J5R?
You can download the F271K25S3NN63J5R datasheet or visit the Vishay website for support.
Who is the manufacturer of F271K25S3NN63J5R?
Vishay
