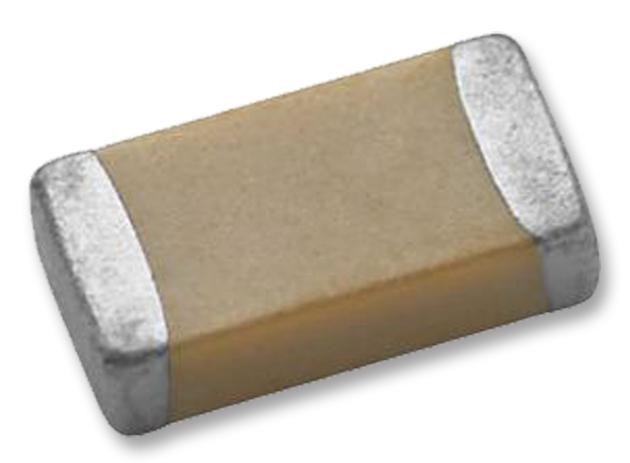

Vishay HV1825A470JXHATHV High Voltage Ceramic Capacitor
The HV1825A470JXHATHV is a high voltage multilayer ceramic capacitor designed for demanding electronic applications. It features a ceramic dielectric, polymer termination for mechanical robustness, and a voltage rating of 5000 V. Suitable for input/output filtering, snubber circuits, and switching power supplies, this component offers excellent reliability, thermal shock resistance, and low dissipation factor. Its compact surface-mount design ensures easy installation in high-voltage environments where durability and stable performance at elevated temperatures are critical.
Vishay HV1825A470JXHATHV High Voltage Ceramic Capacitor Specifications:
- Case Size: 1825 (4.50 mm x 4.50 mm)
- Capacitance: 470 pF
- Voltage Range: 5000 V
- Dielectric: COG (NPO)
- Temperature Range: -55 °C to +125 °C
- Temperature Coefficient of Capacitance: 0 ppm/°C ± 30 ppm/°C
- Dissipation Factor: 0.1% maximum at 1.0 V, 1 MHz
- Insulating Resistance: 100 000 MΩ at +25 °C, 10 000 MΩ at +125 °C
- Aging Rate: 0% per decade
- Surface Mount, Polymer Termination, RoHS Compliant, Green finish
Buy the Buy VISHAY HV1825A470JXHATHV High Voltage Ceramic Capacitor Online
Purchase the VISHAY HV1825A470JXHATHV high voltage ceramic capacitor online now for reliable performance in filtering, snubber circuits, and switching power supplies. Designed for demanding applications, it features a ceramic dielectric, polymer termination for mechanical resilience, and a voltage rating of 5000 V. Its compact surface-mount form factor ensures easy integration into high-voltage electronic systems. Ideal for industrial, lighting, and power applications, this capacitor offers excellent stability, thermal shock resistance, and low dissipation factor, making it the perfect choice for long-lasting, high-voltage reliability.
Get VISHAY HV1825A470JXHATHV high voltage ceramic capacitor today—built for precision, durability, and reliable high-voltage performance in critical circuits.
Frequently Asked Questions
Where can I buy Vishay HV1825A470JXHATHV?
You can click on the BUY or RFQ button to purchase HV1825A470JXHATHV from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part HV1825A470JXHATHV?
You can download the HV1825A470JXHATHV datasheet or visit the Vishay website for support.
Who is the manufacturer of HV1825A470JXHATHV?
Vishay
