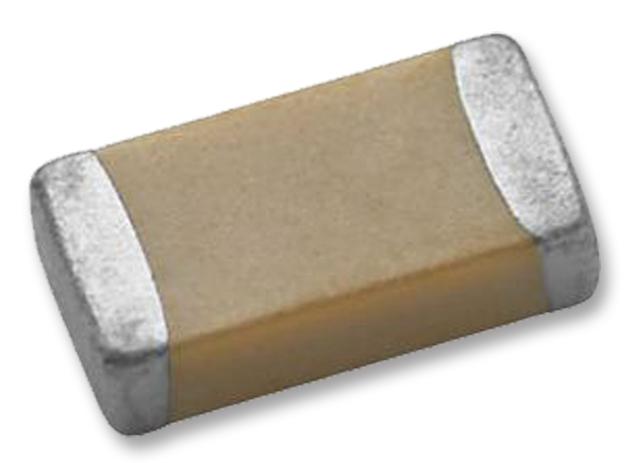

Vishay HV1825Y332KXVATHV High Voltage Ceramic Capacitor
The HV1825Y332KXVATHV is a high-voltage multilayer ceramic chip capacitor designed for demanding industrial, lighting, and switching power supply applications. It features a capacitance of 3300 pF (3.3 nF), a maximum voltage of 5000 VDC, and operates within a temperature range of -55°C to +125°C. Built with a rugged X7R dielectric and noble metal electrodes, it offers excellent reliability, thermal shock resistance, and high voltage breakdown performance. Suitable for input/output filtering, snubbers, and AC lighting circuits, it ensures stable performance and compliance with RoHS standards.
Vishay HV1825Y332KXVATHV High Voltage Ceramic Capacitor Specifications:
- Capacitance: 3300 pF (3.3 nF)
- Maximum voltage: 5000 VDC
- Operating Temperature: -55°C to +125°C
- Dielectric: X7R
- Case Size: 1825
- Material: High reliability ceramic with noble metal electrodes
- Dissipation Factor: 2.5% at 1.0 V, 1 kHz
- Insulation Resistance: 100 MΩ at +25°C, 10 MΩ at +125°C
- Aging Rate: 1% per decade
- RoHS compliant and environmentally friendly
- Terminations: 100% tin plated, matte finish
- Maximum dimensions: Length 0.245 inches (6.22 mm), Width 0.126 inches (3.20 mm), Thickness 0.030 inches (0.76 mm)
Buy the VISHAY HV1825Y332KXVATHV – Reliable High Voltage Capacitor for Industrial Applications
Purchase the VISHAY HV1825Y332KXVATHV high voltage ceramic capacitor online today and ensure your industrial or lighting project benefits from reliable, high-performance components. This 3300 pF capacitor rated at 5000 VDC offers superior thermal shock resistance, excellent dielectric stability, and RoHS compliance, making it ideal for input/output filtering, snubbers, and AC lighting circuits. Easy to integrate with surface-mount technology, this capacitor guarantees consistent performance under demanding electrical conditions. Order now for quick delivery and long-term operational security.
Buy VISHAY HV1825Y332KXVATHV now and experience unmatched reliability and performance in high-voltage power filtering.
Frequently Asked Questions
Where can I buy Vishay HV1825Y332KXVATHV?
You can click on the BUY or RFQ button to purchase HV1825Y332KXVATHV from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part HV1825Y332KXVATHV?
You can download the HV1825Y332KXVATHV datasheet or visit the Vishay website for support.
Who is the manufacturer of HV1825Y332KXVATHV?
Vishay
