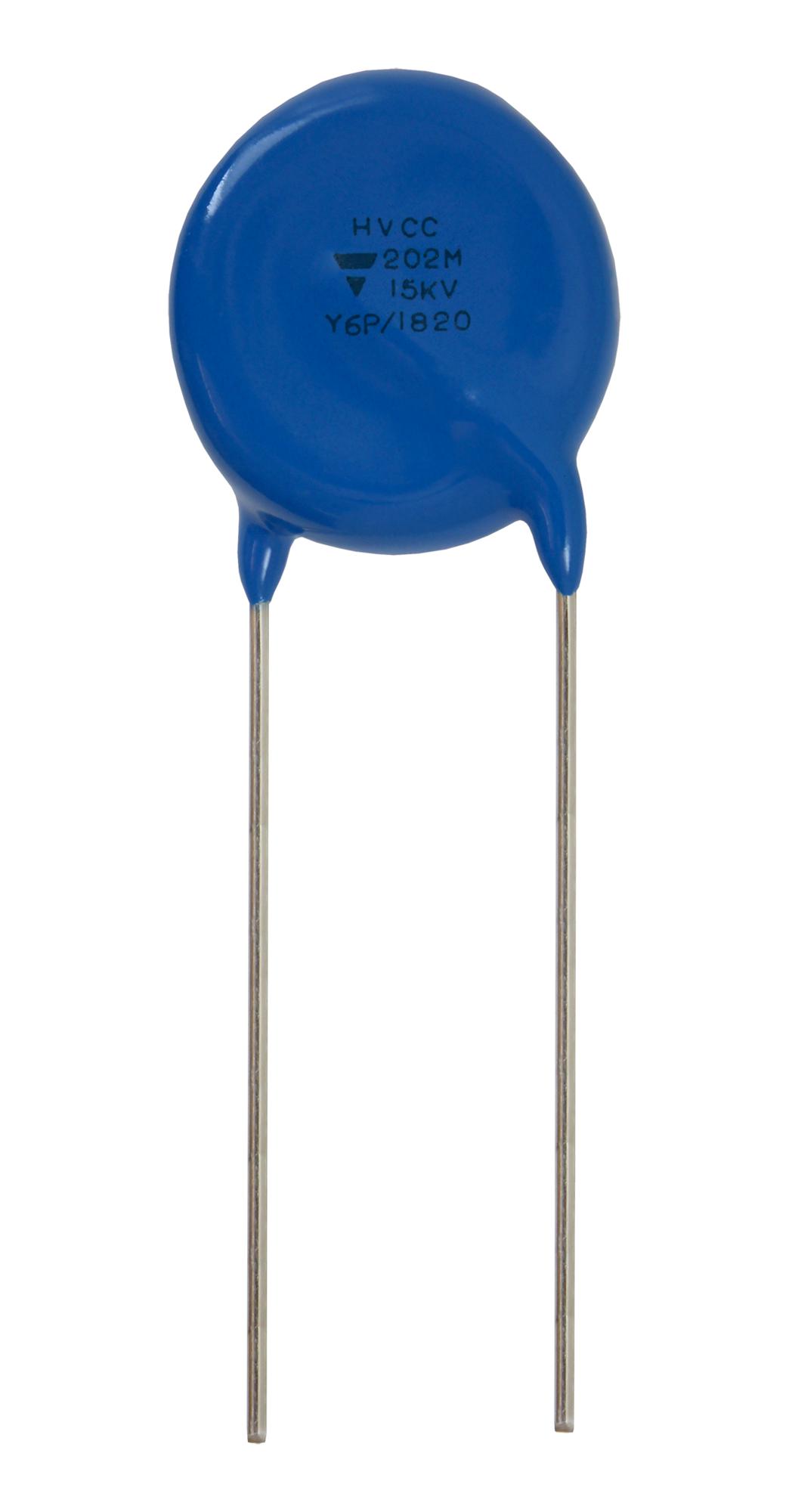

Vishay HVCC203Y6P681MEAX High Voltage Ceramic Capacitor
The high voltage ceramic capacitor series offers reliable performance with Y6P dielectric, rated voltages up to 20,000V, capacitance values up to 2nF, and radial leads. Designed for high voltage power supplies, medical x-ray, industrial lasers, and baggage scanners, these small-sized capacitors feature flame-retardant epoxy coating, low dissipation factor max 1.5%, and operate within -30°C to +105°C. They are optimized for demanding applications requiring high insulation resistance, high capacitance, and robustness against environmental conditions, making them ideal for critical electronic systems in industrial and medical equipment.
Vishay HVCC203Y6P681MEAX High Voltage Ceramic Capacitor Specifications:
- Ceramic dielectric: Y6P
- Voltage (Urated, ac): up to 20,000 V
- Capacitance range: 100 pF to 2000 pF
- Capacitance tolerance: ±20%
- Dissipation factor: max 1.5%
- Insulation resistance: min 200,000 MΩ at 500 V
- Operating temperature: -30°C to +105°C
- Max. dissipation: 15
- Material: Ceramic, silver-plated discs
- Lead type: Radial leads with spacing options of 9.5 mm or 12.5 mm
- Coating: Flame-retardant epoxy resin (UL 94 V-0)
- Dimensions: Diameter varies from 8 mm to 19 mm depending on capacitance and voltage
- Working conditions: Suitable for high-voltage power supplies, X-ray sources, pulsed lasers, baggage scanners, and medical equipment
Buy the Buy Vishay High Voltage Ceramic Capacitors Part Number HVCC203Y6P681MEAX Online
Order the Vishay HVCC203Y6P681MEAX high voltage ceramic capacitor online today. With voltage ratings up to 20,000V, capacitance up to 2nF, and reliable Y6P dielectric, it’s ideal for high-power, medical, and industrial systems. The capacitor features radial leads, flame-retardant epoxy coating, and operates within -30°C to +105°C for durability in demanding environments. Ensure your critical electronic systems perform optimally by purchasing this high-quality ceramic capacitor through our fast, secure online platform.
Buy Vishay HVCC203Y6P681MEAX high voltage ceramic capacitor now and ensure reliable performance in your industrial or medical high-power applications.
Frequently Asked Questions
Where can I buy Vishay HVCC203Y6P681MEAX?
You can click on the BUY or RFQ button to purchase HVCC203Y6P681MEAX from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part HVCC203Y6P681MEAX?
You can download the HVCC203Y6P681MEAX datasheet or visit the Vishay website for support.
Who is the manufacturer of HVCC203Y6P681MEAX?
Vishay
