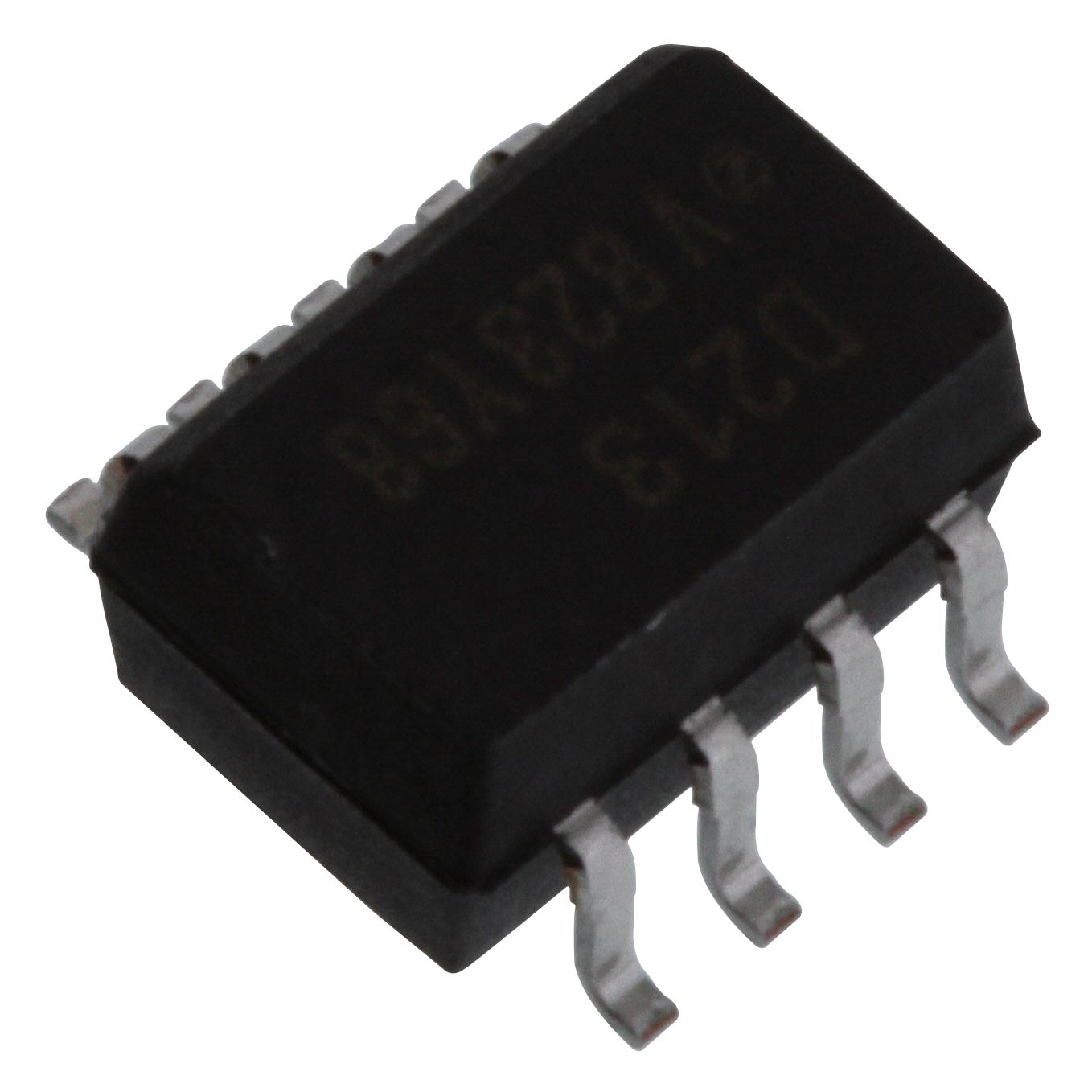

Vishay ILD213T Two-Channel Optocoupler
The ILD213T is a two-channel phototransistor output optocoupler with Gallium Arsenide infrared LED and silicon NPN phototransistor. It provides high electrical isolation, transmitting signals including DC levels. In a compact SOIC-8A surface-mount package, it is ideal for high-density, space-limited applications such as LED lighting, communications, and networking. Compatible with various soldering techniques like IR reflow, vapor phase, and dual wave, it supports robust insulation ratings and meets industry safety standards, making it reliable for sensitive electronic systems.
Vishay ILD213T Two-Channel Optocoupler Specifications:
- Package: SOIC-8A surface-mount
- Isolation test voltage: 4000 Vms
- Maximum collector-emitter voltage: 70 V
- Emitter-collector breakdown voltage: 7 V
- Continuous forward current: 30 mA per channel
- Power dissipation: 50 mW (input), 125 mW (output)
- Operating temperature: -55°C to +100°C
- Storage temperature: -55°C to +150°C
- Soldering profile: max. 260°C for 10 seconds
- CTR range: 40-200% depending on part number
- Safety isolation power: 350 mW
- Reinforced insulation: withstands 4000 V RMS
- RoHS, halogen-free compliant
- Material: Gallium Arsenide LED, silicon NPN phototransistor
- Includes standards for surface mounting and high-density circuit integration
- Supports dual wave, vapor phase, and IR reflow soldering
- Delivered on tape and reel conforming to EIA-481-2
Buy the VISHAY ILD213T – Reliable Two-Channel Optocoupler for Industrial Applications
Get the Vishay ILD213T two-channel optocoupler now and ensure high electrical isolation for your sensitive circuits. Perfect for space-constrained applications such as LED lighting, communication devices, and networking solutions. Featuring a compact SOIC-8A package, it supports multiple soldering types including IR reflow, vapor phase, and dual wave soldering, with reliable safety ratings. Designed for high performance, this optocoupler provides consistent signal transmission, making it an ideal choice for engineers seeking durability, efficiency, and space-saving design in their electronic assemblies.
Order your Vishay ILD213T high-density optocoupler today and enhance the electrical safety and isolation efficiency in your projects.
Frequently Asked Questions
Where can I buy Vishay ILD213T?
You can click on the BUY or RFQ button to purchase ILD213T from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part ILD213T?
You can download the ILD213T datasheet or visit the Vishay website for support.
Who is the manufacturer of ILD213T?
Vishay
