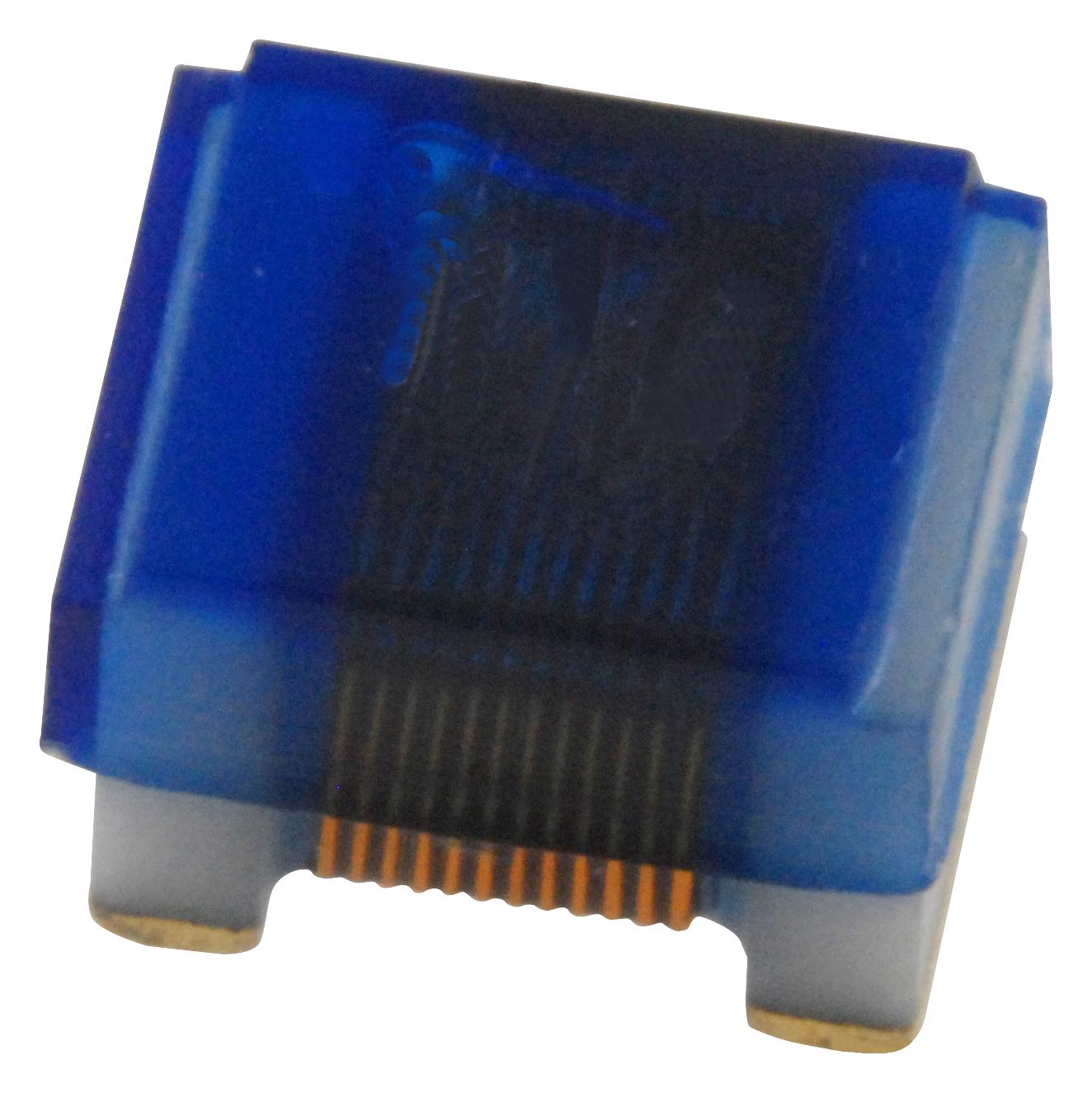

Vishay IMC1008ER68NJ Surface Mount High Frequency Inductor
The IMC-1008 is a high-performance surface mount inductor suitable for high-frequency applications, offering high self-resonant frequencies and high Q values at elevated frequencies. Constructed with wirewound technology, it is compliant with RoHS standards and compatible with vapor phase and infrared reflow soldering processes. It features a wide inductance range from 3.3 nH to 47,000 nH, with various core materials including ceramic and ferrite, operating efficiently from -40°C to +125°C, making it ideal for RF circuits, filtering, and power management in advanced electronic systems.
Vishay IMC1008ER68NJ Surface Mount High Frequency Inductor Specifications:
- Inductance Range: 3.3 nH to 47,000 nH
- Self-Resonant Frequency (SRF): up to 10,000 MHz depending on model
- Q Factor: Minimum 100 at test frequency, optimized at high frequencies
- Operating Temperature: -40°C to +125°C
- Construction: Wirewound, RoHS compliant
- Core Materials: Ceramic (3.3 nH to 1000 nH), Ferrite (1200 nH to 47000 nH)
- Soldering: Vapor phase and infrared reflow compatible
- Package Type: Surface mount, tape and reel packaging for automatic handling
- Physical Dimensions: Length approximately 0.098 inch (2.49mm), width 0.067 inch (1.70mm)
- RoHS Compliance: Yes
Buy the Vishay IMC-1008 U+2013 Reliable High Frequency Inductors for Industrial Applications
Purchase the Vishay IMC-1008 surface mount inductor online now and experience high-frequency performance with wide inductance options, high Q, and reliable RoHS compliance. Perfect for RF filters, power supplies, and advanced electronics, this inductor ensures excellent stability and thermal performance from -40°C to +125°C. Efficient in vapor phase and infrared reflow soldering, it is delivered in tape and reel packaging for easy automation, enabling seamless integration into your manufacturing process. Elevate your electronic designs with Vishay’s trusted inductors today.
Order your Vishay Series IMC-1008 high-frequency inductor today and enhance your RF circuits and power management solutions with dependable quality.
Frequently Asked Questions
Where can I buy Vishay IMC1008ER68NJ?
You can click on the BUY or RFQ button to purchase IMC1008ER68NJ from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IMC1008ER68NJ?
You can download the IMC1008ER68NJ datasheet or visit the Vishay website for support.
Who is the manufacturer of IMC1008ER68NJ?
Vishay
