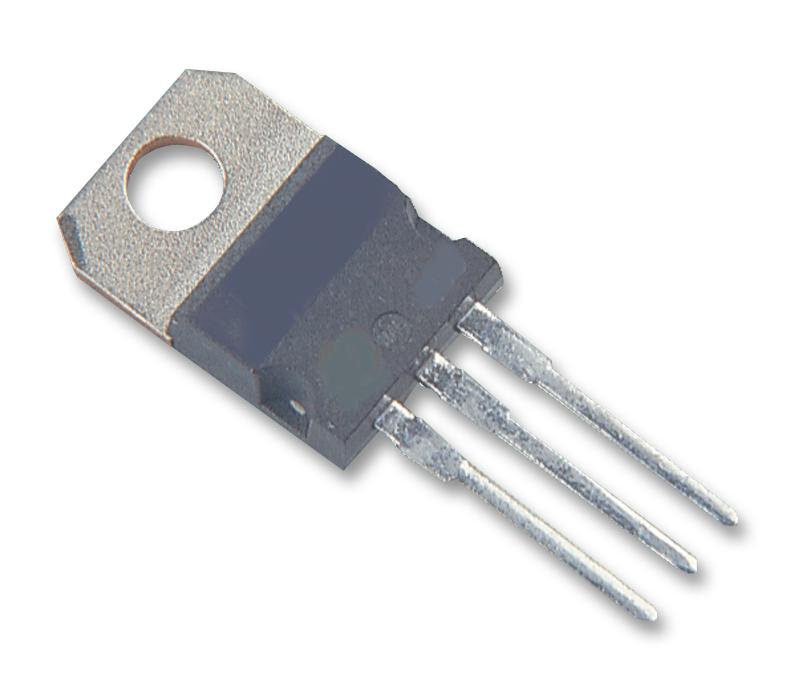

Vishay IRFZ20PBF Power MOSFET
The IRFZ20PBF is an N-channel power MOSFET with low RDS(on), fast switching capabilities, and excellent thermal stability. Suitable for switching power supplies, motor controls, inverters, and pulse circuits, it handles low voltage applications efficiently. Designed for high reliability, it offers ease of paralleling, low drive current, and robust performance at various temperatures. Ideal for power management, automotive, audio, and portable equipment, this MOSFET ensures high efficiency and dependable operation even in demanding conditions. It is designed to meet application-specific needs with excellent stability and fast response times.
Vishay IRFZ20PBF Power MOSFET Specifications:
- Drain-Source Voltage: 50 V
- Gate-Source Voltage: ±20 V
- Continuous Drain Current: 10 A at 25°C, Pulsed Drain Current: 60 A
- Power Dissipation: 40 W at 25°C
- Gate Threshold Voltage: 2.0 V to 40 V
- On-Resistance: 0.08 Ω (max) at Vgs=10V, Id=10A
- Gate Charge: 9.0 nC at Vgs=10V
- Total Gate Charge: 12-17 nC
- Input Capacitance: 560-860 pF
- Output Capacitance: 250-350 pF
- Reverse Transfer Capacitance: 60-100 pF
- Junction-to-Ambient Thermal Resistance: 80°C/W
- Junction-to-Case Thermal Resistance: 3.12°C/W
- Operating Junction Temperature Range: -55°C to +160°C
- Body Diode Forward Voltage: 15 V at 15A
- Reverse Recovery Time: 0.4 μs
- Maximum Power Dissipation: 40 W at 25°C
- Peak Diode Recovery dV/dt: 100 V/μs
Buy the Buy Vishay IRFZ20PBF Part Number IRFZ20PBF Online
Enhance your projects with the Vishay IRFZ20PBF, a high-performance N-channel power MOSFET designed for low voltage, fast switching, and reliable operation. With low RDS(on), excellent thermal stability, and high current handling, this MOSFET is perfect for switching power supplies, motor controllers, inverters, and pulse circuits. Its ease of paralleling and low drive current make it ideal for automotive, audio, and portable applications. Purchase online today and benefit from dependable performance and quick delivery for your demanding electronics projects.
Order your Vishay Series IRFZ20PBF power MOSFET today and ensure reliable, high-efficiency performance for switching power supplies and motor control systems.
Frequently Asked Questions
Where can I buy Vishay IRFZ20PBF?
You can click on the BUY or RFQ button to purchase IRFZ20PBF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IRFZ20PBF?
You can download the IRFZ20PBF datasheet or visit the Vishay website for support.
Who is the manufacturer of IRFZ20PBF?
Vishay
